FD101.10

FD101.10 used to connect motor rotating shaft and solid shaft encoder.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Small steel spring construction

Simple installation, good elasticity

Inhibition of vibration

Forced repair slight radial offset, stable and reliable connection

Basic parameters

Maximum speed3000RPM

Rated torque0.5Nm

Maximum radial displacement±1mm

Maximum axial displacement±1mm

Maximum angular deviation±5°

Maximum tightening torque1.5Nm

Mechanical parameters

Overall dimensions（L×d）35×16

Installation methodFastening screw

MaterialsNickel plated spring steel

Weight28g

Environmental conditions

Temperature﹣30…+120℃

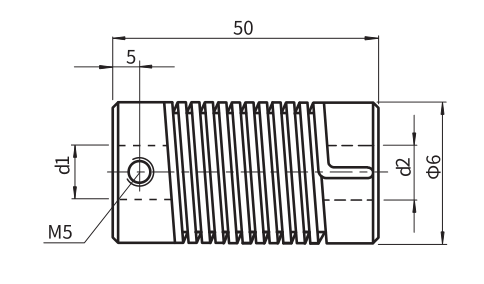

Overall dimensions
