FD101.11

FD101.11 used to connect motor rotating shaft and solid shaft encoder.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Steel spring construction

Simple installation, good elasticity

Inhibition of vibration

Forced repair slight radial offset, stable and reliable connection

Basic parameters

Maximum speed3000RPM

Rated torque1.5Nm

Maximum radial displacement±1.5mm

Maximum axial displacement±1mm

Maximum angular deviation±5°

Maximum tightening torque3Nm

Mechanical parameters

Overall dimensions（L×d）50×26

Installation methodFastening screw

MaterialsNickel plated spring steel

Weight100g

Environmental conditions

Temperature﹣30…+120℃

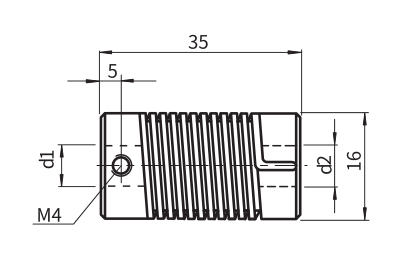

Overall dimensions
