FD101.12

FD101.12 used to connect motor rotating shaft and solid shaft encoder.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Bellows construction

Simple installation, good elasticity

Inhibition of vibration

Forced repair slight radial offset, stable and reliable connection

Basic parameters

Maximum speed8000RPM

Rated torque0.8Nm

Maximum radial displacement±0.3mm

Maximum axial displacement±0.5mm

Maximum angular deviation±4°

Maximum tightening torque1.5Nm

Mechanical parameters

Overall dimensions（L×d）35×20

Installation methodFastening screw

MaterialsNickel plated spring steel

Weight34g

Environmental conditions

Temperature﹣30…+120℃

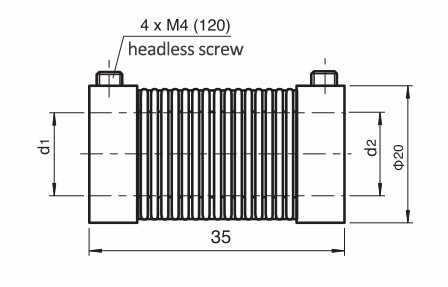

Overall dimensions
