FD101.13

FD101.13 used to connect motor rotating shaft and solid shaft encoder.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Stainless steel bellows construction

Simple installation, good elasticity

Inhibition of vibration

Forced repair slight radial offset, stable and reliable connection

Basic parameters

Maximum speed7000RPM

Rated torque1Nm

Maximum radial displacement±0.2mm

Maximum axial displacement±0.6mm

Maximum angular deviation±4°

Maximum tightening torque1.5Nm

Mechanical parameters

Overall dimensions（L×d）35×22.5

Installation methodFastening screw

MaterialsStainless steel 316

Weight30g

Environmental conditions

Temperature﹣30…+120℃

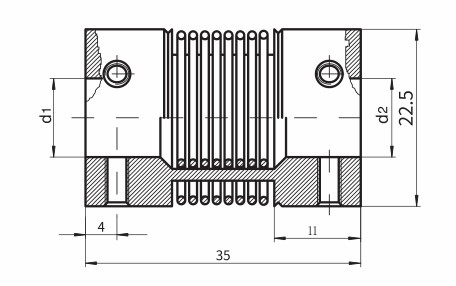

Overall dimensions
