FD101.15

FD101.15 used to connect motor rotating shaft and solid shaft encoder.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Steel spring plate construction

Simple installation, good elasticity

Inhibition of vibration

Forced repair slight radial offset, stable and reliable connection

Basic parameters

Maximum speed15000RPM

Rated torque1Nm

Maximum radial displacement±0.5mm

Maximum axial displacement±0.3mm

Maximum angular deviation±1.5°

Maximum tightening torque1.3Nm

Mechanical parameters

Overall dimensions（L×d）22×30

Installation methodThe clamping flange

MaterialsFlange：magnalium；Spring: engineering plastics

Weight25g

Environmental conditions

Temperature﹣30…+80℃

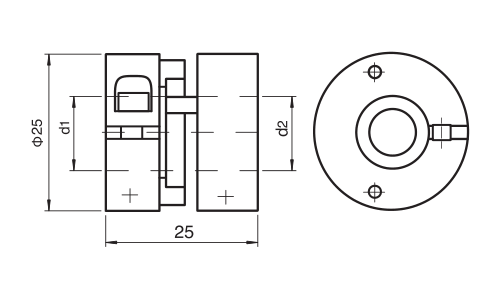

Overall dimensions
