FD101.16

FD101.16 used to connect motor rotating shaft and solid shaft encoder.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Resin spring disc architecture

Simple installation, good elasticity

Inhibition of vibration

Forced repair slight radial offset, stable and reliable connection

Basic parameters

Maximum speed5000RPM

Rated torque1Nm

Maximum radial displacement±0.3mm

Maximum axial displacement±0.3mm

Maximum angular deviation±5°

Maximum tightening torque1.2Nm

Mechanical parameters

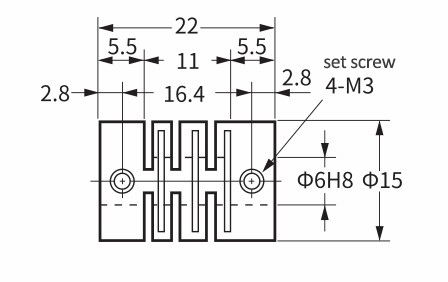

Overall dimensions（L×d）22×15

Installation methodFastening screw

MaterialsResin；AL

Weight25g
