PQ01C

PQ01C

PQ01C Ultra-thin photoelectric switch, mainly used in the detection of small objects in a narrow space, can be used in electronics, semiconductors, printing machinery, robotics and other fields.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Super thin shape design, only 3.6mm thick

Diffuse type and opposite type are optional

The response speed is less than 1ms

Suitable for narrow installation space, such as electronics, semiconductor, printing and other industries

Use a visible red light source

Cable connection

Strong anti-interference ability

Basic parameters
Detection distanceTrough beam：500mm
Diffuse reflection：30mm
Response time≤1ms
Light source diameter (diffuse reflection)Circular spot with diameter of 2mm at 15mm
A circular spot with a diameter of 3mm at
30mm
Black and white segment difference (diffuse type)Less than 15% of the movement distance
Minimum detected objectOpaque objects above 1mm
Electrical parameters
Power supply12…24VDC
Offset Voltage≤15% DC
Open circuit current≤30mA
Protection current1.2 times
Output current≤100mA
Signal voltage≤2V
Output modePNP or NPN , NO or NC
Capacitive load≤0.2μF
VDE Security levelⅢ
Mechanical parameters
MountM2 nut fixing
Connection type4 wire
Cable2m
Product size20.5×13×3.6mm (L×W×H)
Shell materialABS plastic
Environmental conditions
Operating temperature﹣25…+55℃
Storage temperature﹣30…+70℃
Protection classIP66

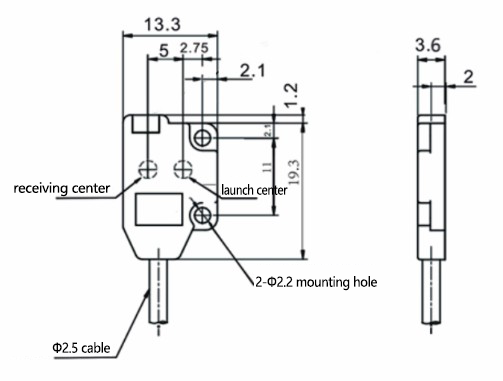

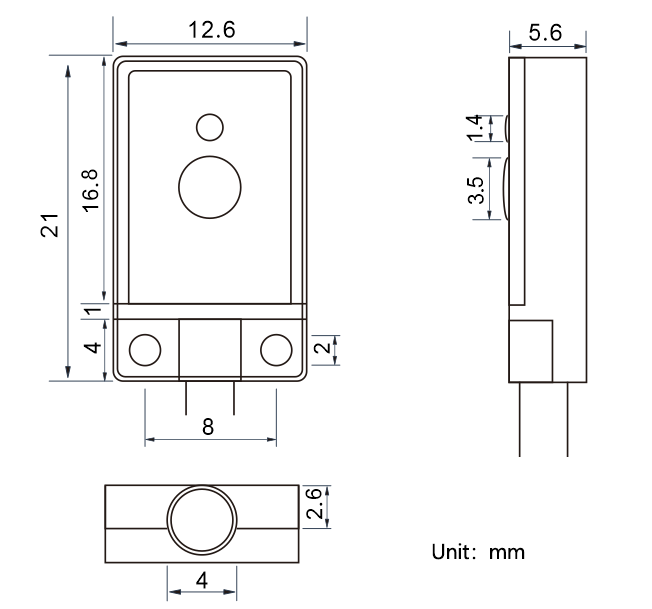

Overall dimensions

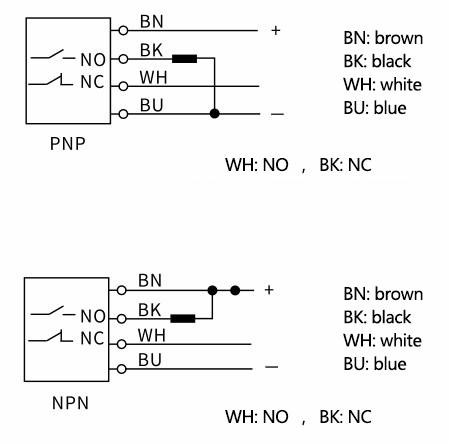

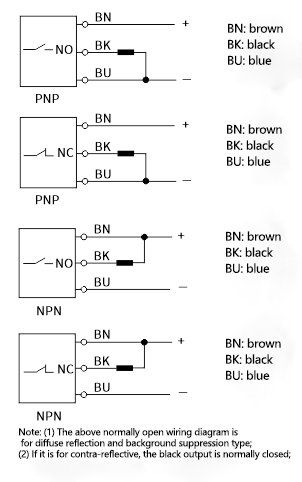

Wiring diagram
