PU18M

PU18M cylindrical ultrasonic sensor, good stability, detection range up to 1m.
Type of sample：PU18M-B01A.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Cylindrical structure, detection range up to 1m

There are 5 output modes

The repetition accuracy is 1mm

Built-in temperature compensation

Good stability, fast response speed

Basic parameters

Detection range60…1000mm

Adjusting range60…1000mm

Dead zone 0…60mm

Repeatability≤0.1%F.S.

Response latency100ms

Transducer frequencyAbout 200KHz

Resolution ratio 0.5mm

Standard target board100×100mm

Temperature drift≤2%F.S.

Electrical parameters

Power supply12…30V DC

Output typePNP or NPN or 4…20mA or 0…5V，0…10V or
digital quantity(RS232/RS485)

No-load current＜25mA

Drive currentPNP or NPN ：200mA

Load impedance4…20mA : ≤300 Ohm
0…5V , 0…10V：≤1K Ohm

Mechanical parameters

ConstructionCylindrical

Connection type 4 core cable，2m

Environmental conditions

Environment temperature﹣20…+70℃

Storage temperature﹣30…+85℃

Protection classIP65

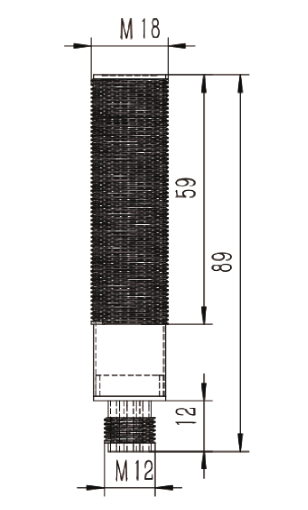

Overall dimensions

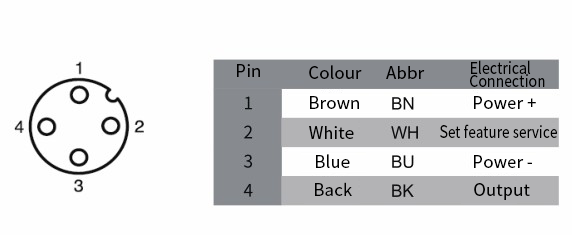

Wiring diagram
