FD-ES

FD-ES S type gravity sensor, the main application objects for hook scale, belt scale, weighing ingredients.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The rated load is 50kg...7.5t

Sensitivity 2.0±0.003mV/V or 3.0±0.003mV/V

Accuracy level 0.03

Rated excitation voltage 10...12VDC

Insulation resistance ≥5000 MΩ

Safe load 150% F.S.

Damage load 200%F.S

Basic parameters

Rated load50，100，150，200，250，300，500，750kg，
1t，1.5t，2t，3t，5t，7.5t

Accuracy class0.03

SensitivityH：2.0±0.003mV/V
Without：3.0±0.003mV/V

Linear error±0.03%F.S

Hysteresis error±0.03%F.S

Creep（30 minutes）±0.03%F.S

Zero temperature effect±0.02%F.S/10℃

Temperature effect on sensitivity±0.02%F.S/10℃

Safety load150%F.S

Breaking load200%F.S

Electrical parameters

Rated excitation voltage10…12VDC

Input impedance400±20Ω (1.5…5t)

Output impedance352±5Ω

Insulation resistance±5000MΩ

Mechanical parameters

MaterialAlloy steel, stainless steel

CableLength can be customized

Environmental conditions

Operating temperature﹣30…+70℃

Rated temperature﹣10…+40℃

Protection classIP66 (50Kg…1t)，IP67 (1.5t…5t)

Overall dimensions

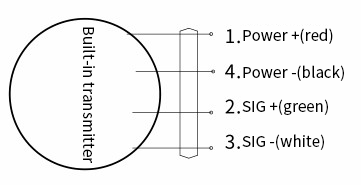

Wiring diagram


Brochures

Manuals

CAD/CAE

Certificate
