Power supply21.6…253VAC 50…60Hz or 19.2…300VDC
Fuse400mA SB / 250VAC
Max power dissipation2.0W
Maximum power consumption2.0W

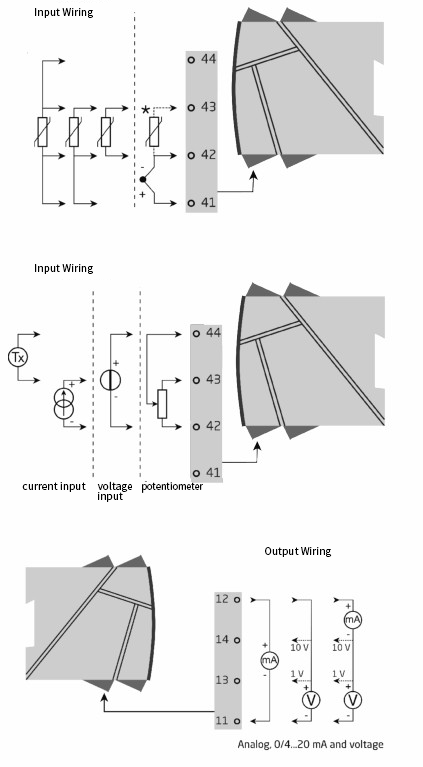

RTD input typePt10/20/50/100/200/250/300/400/500/1000；
Ni50/100/120/1000；Cu10/20/50/100
Cable resistanceMax 50Ω
Sensor currentRated 0.2mA
Effect of sensor cable resistance on accuracy (3-/4- wire)＜0.002Ω/Ω
Sensor fault detectionHave
Sensor short circuit detection＜15Ω
Current input measurement range0…23mA
Current input adjustable measurement range0…20mA和4…20mA
Input resistanceRated 10MΩ
Sensor failure detection: 4...20mA loop is disconnectedYes
Voltage input measurement range0…12VDC
Measurement range can be set0 / 0.2…1.0 / 1…5.0 / 2…10VDC
Linar resistance input min…max0…10000Ω
RP input min…max10Ω…100KΩ
TC input thermocouple typeB ,E , J , K , L , N , R , S , T , U , W3 , W5 , LR
Cold End Compensation (CJC), external compensation is achieved through connector 5910 with built-in sensors20…28℃ ±1℃，﹣20…20℃/28…70℃ 2℃
Cold end Compensation (CJC), internal compensation through built-in sensors±(2.0℃+0.4℃*△t)
Sensor fault current: during measurement/otherRated 2μA / 0μA
Current output0…23mA
Signal range can be set0/ 0.2…1； 0/1…5；0 / 2…10；1…0.2/0；
5…1/ 0；10…2/0V
Load（@current output）800Ω
Load stabilityRange set at 0.01% / 100Ω
Sensor fault alarm output0 / 3.5 / 23mA /no
Meet NAMUR NE43 standard
upper and lower limits of current23mA/3.5mA
Output limit 4…20 and 20…4mA signals3.8…20.5mA
Output limit 0…20 and 20…0mA signals0…20.5mA
Current limit28mA
Voltage output signal Range0…10VDC
Load（@voltage output）500KΩ
The set rangeThe currently selected measurement range
