TA2-D1101.X square general-purpose isolated transmitters can be applied to perform linear electronic temperature measurements via RTD or TC sensors, or conversion linear resistors vary in resistance to standard analog current/voltage signals, or power modules and signal isolators for 2-wire transmitters, or process control with standard analog output, or electrical isolation of analog signals, and measurement of floating signals.
2-wire power supply > 15V
Input: RTD, TC, potentiometer, current, voltage
Current and voltage output (current output 0...23mA, voltage output 0...10 VDC)
High measuring accuracy, less than 0.1% set range
6mm ultra-thin shell design
Excellent EMC electromagnetic compatibility and noise suppression

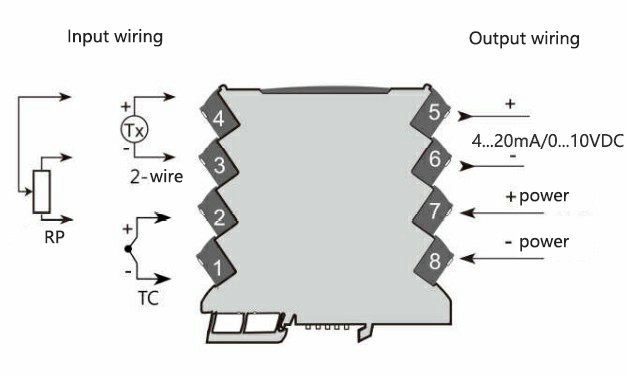

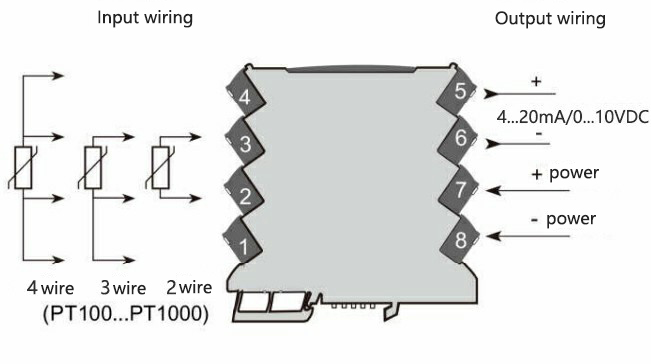

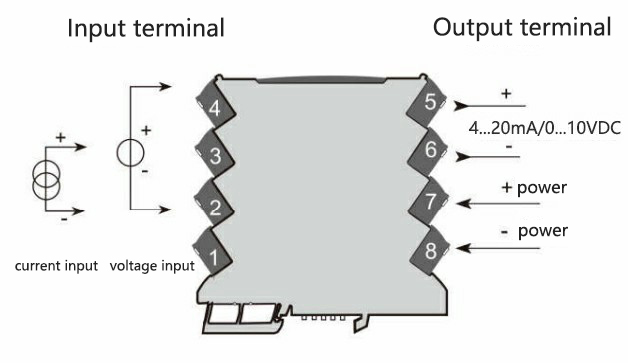

Wiring diagram
