The FD105 dip sensor can measure the sensor output relative to the horizontal plane tilt and pitch Angle. Suitable for use in famous harsh industrial control environment. It is often used in construction machinery dip Angle monitoring, bridge monitoring, ship monitoring, satellite antenna dip Angle monitoring and other fields.
Uniaxial inclination and biaxial inclination are optional
Measurement dip range is optional
Obliquity data can be output through communication
Built-in temperature compensation to ensure stability at low and high temperatures
High vibration resistance >2000g
High resolution, high precision

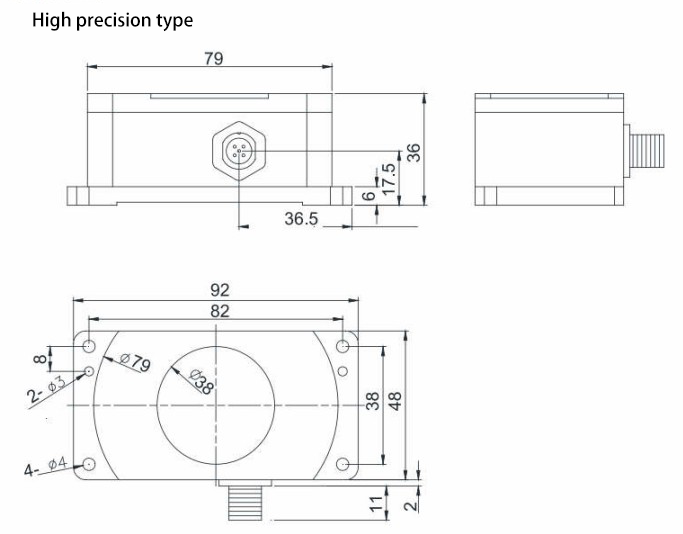

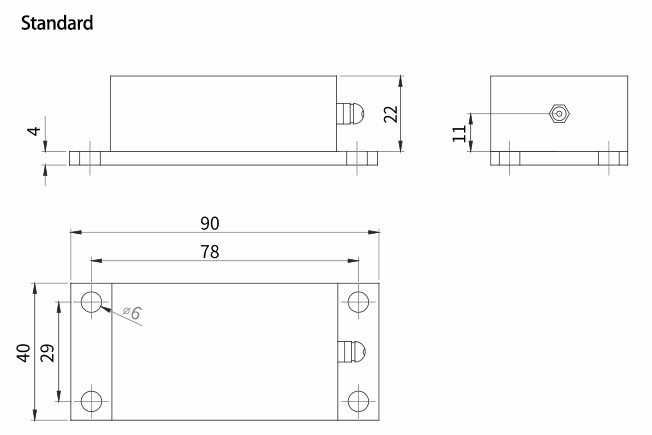

Overall dimensions

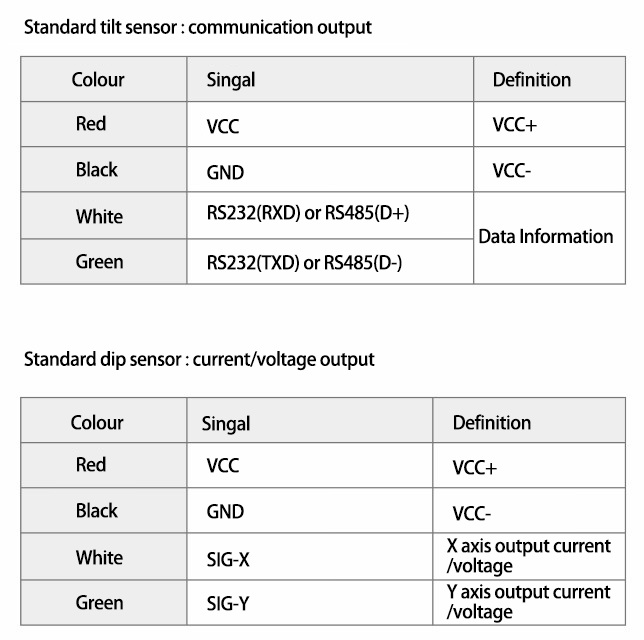

Wiring diagram
