FD63EC

FD63EC

FD63EC flat plate magnetostrictive displacement sensor is a cost-effective flat type product, suitable for installation on the surface of the machine, or some small outside space. It can be used in fluid power, rubber, wood, food,automobile, injection molding, energy and other fields.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

High cost performance, flat plate type sensor

The highest resolution is 5μm

Analog output

Absolute position output, start and stop position full range adjustable, not affected by power loss

Aluminum profile completely closed design, protection class IP65

Suspension magnet non-contact measurement, never wear

Reliable operation, core components are impact, vibration, EMC testing

Basic parameters
measured datadisplacement
Effective distanceEC1：25…2500mm，Others can be customized
as required
EC2/EC3：50…2500mm，Others can be
customized as required
ResolutionEC1: 12 bit D/A or 0.025% F.S (min 100μm)
EC2: 14 bit D/A or 0.0065% F.S (min 10μm)
EC3: 16 bit D/A or 0.0015% F.S (min 5μm)
Non-linearityEC1: ±0.05% F.S
EC2: ±0.03% F.S
EC3: ±0.02% F.S
RepeatabilityEC1：＜±0.1mm
EC2/EC3：＜±0.005% F.S
Hysteresis＜10μm
UpdateTimeEC1：1ms；EC2/EC3：1ms (range≤1m)
2ms (1m＜range≤2m)；3ms (2m＜range≤3m)
Electrical parameters
Power supply24VDC±20%
Power＜80mA
Polarity protectionMax -30VDC
Overpressure protectionMax 36VDC
Insulation Resistance＞10MΩ
Insulating strength500V
Output currentEC1/EC3:4…20 or 20…4mA(min/max load 0/500Ω)
EC2:0…20mA or 4…20mA(min/max load 0/500Ω)
Output voltage0…10VDC or 0…5VDC (minimum load
resistance≥10KΩ）
Mechanical parameters
Magnetic ring velocityRandom
Rod materialAl shell
Connection TailStraight-out cable、aviation socket
MountEC1/EC2：arbitrary direction，clip mounting
EC3：Removable fixing clip
Position magnetEC1：Slider magnet；EC2：Square magnet、
Ladder magnet
EC3：Type C magnet、Ladder magnet
Environmental conditions
Operating temperatureEC1：-40…+75℃；EC2/EC3：-40…+85℃
Operating humidityHumidity 90%, no condensation
Temperature coefficient＜30ppm/℃
Impact index50g（EC1/EC2：11ms；EC3：6ms）
Vibration indexEC1/EC2: 10g/10…2000Hz；EC3: 20g/10…2000Hz
Protection classIP65

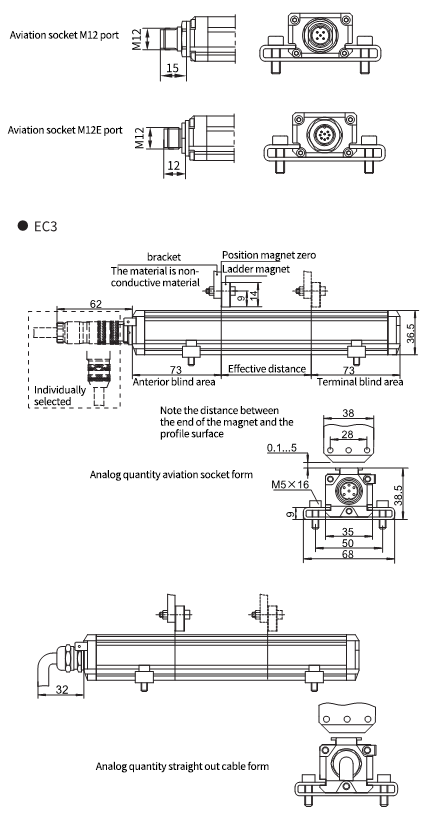

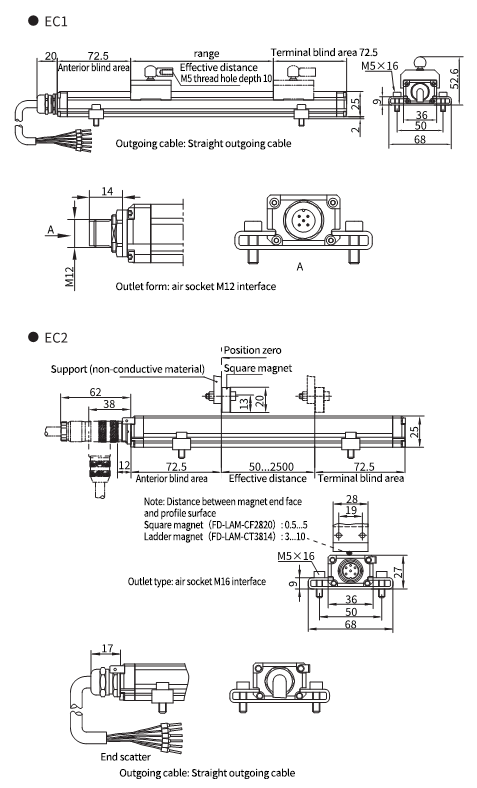

Overall dimensions

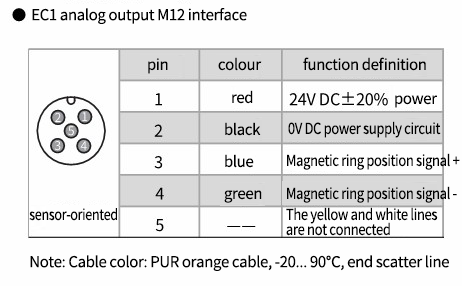

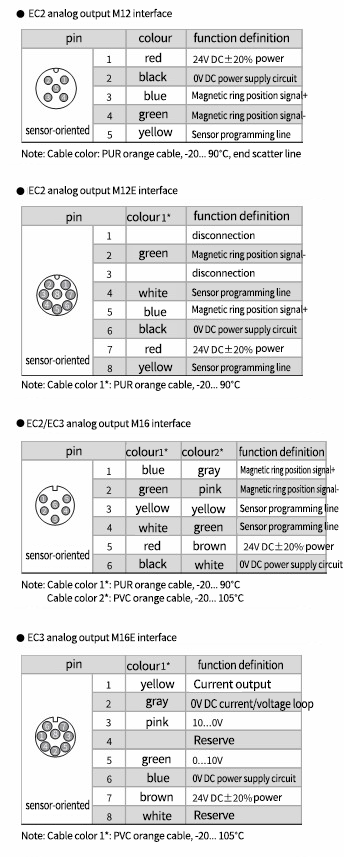

Wiring diagram
