FD-L1C25

FD-L1C25

FD-L1C25 laser ranging sensor is an optical distance sensor, which is suitable for distance measurement of fixed or moving objects.
Type of sample：FD-L1C25-T1AM12.*

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Measuring range up to 25m

Use of red Class 1 laser beam is safe for human eyes

Supply voltage 18V 30V

Push-pull switch output and analog output can be configured

Various measurement modes can be set according to requirements

With transient protection, polarity reversal protection and output short circuit protection functions

Basic parameters
Measurement range0.1…25m
Measurement accuracy≤±25mm
Resolution ratio1mm
Temperature drift≤±2mm/K
Measurement mode and response timeQuick mode : 15ms ; Standard mode : 50ms ;
Precision mode : 200ms ;
High precision mode : 1000ms
Personalization mode : 3.4…1020ms;
Outlier suppression : 17…1020ms
Laser levelclass 1
Measuring laserWavelength658nm（Red visible light）
Pulse duration6ns
Maximum output power (peak)391mW
FlareAbout 1mm× 7mm at a distance of 4m
Electrical parameters
Power supply18…30VDC
Residual ripple≤15% of UB
Open circuit current≤150mA
Signal voltage high/low≥（UB-2V）/≤2V
Switching outputPush-pull output，Push-pull switch output
cannot be paralleled
Analog outputVoltage：1…10V/0…10V，RL≥2KΩ
Current（Factory setting）4…20mA，RL≤500Ω
Protection currentTransient protection, polarity reversal protection,
short circuit protection for all outputs
Mechanical parameters
Shell materialPlastics
Optical coverGlass
Connection typeM12 connector，Rotable 90°
Connecting cable，2000mm： 133g
WeightM12 connector：70g；
Connecting cable , 2000mm , Conductor section 5
×0.14mm²；
Connecting cable , 200mm , With M12 connector
Environmental conditions
Operating temperature﹣40…+50℃
Storage temperature﹣40…+70℃
VDE protection gradeⅢ
Protection classIP67
Standard applicationIEC 60947-5-2

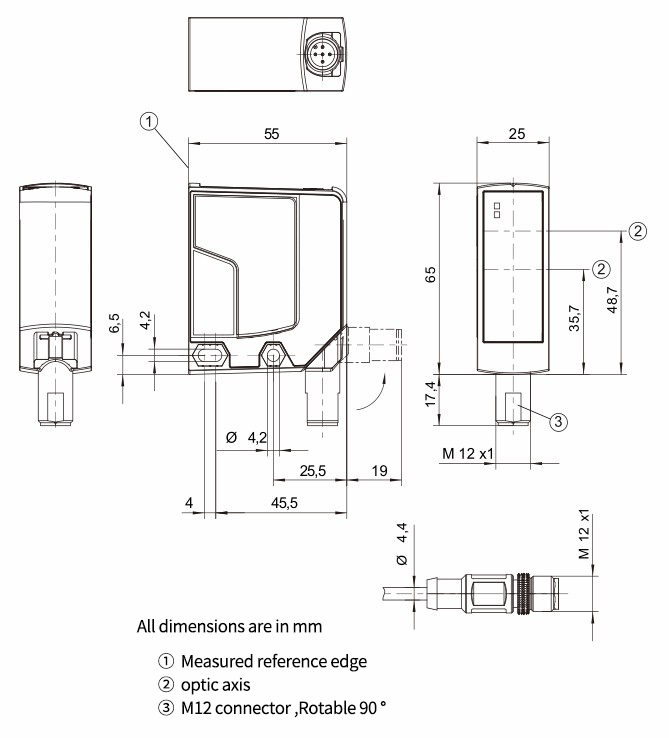

Overall dimensions

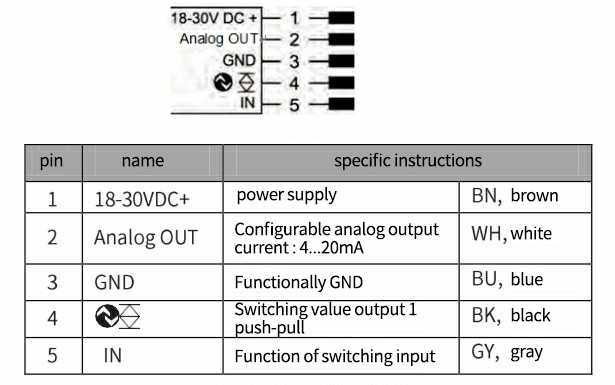

Wiring diagram
