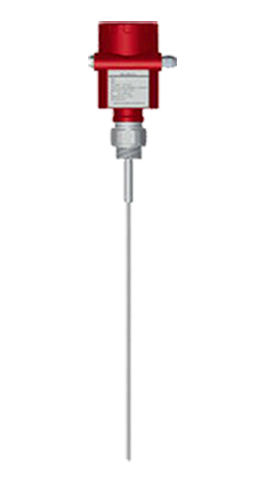

FD30G.10B guided wave electromagnetic integrated interface meter, which uses guided wave radar combined with segmented electromagnetic detection technology, can realize multi-interface liquid level measurement, and has high cost performance in terms of high reliability and ease of use.
Type of sample：FD30G.10B-2114.1000.10010B15.*
Anti-corrosion rod probe, integrated design
It can simultaneously output the analog quantity signal of oil-water and oil-gas dual interface
The parameters can be set according to the user's requirements, and generally there is no need for calibration and commissioning on site
Measuring range 0... 20m
Accuracy ＜ 0.5%, resolution 1mm
Process pressure can reach 2.0MPa
Process temperature can reach 250 ℃
Not affected by noise, steam, dust, vacuum, etc
Not affected by the change of medium density and temperature
Intelligent self-tuning signal processing technology, low failure rate, maintenance-free

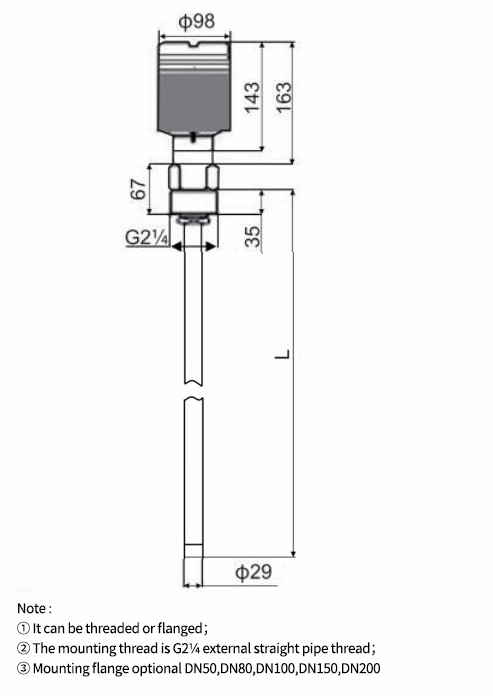

Overall dimensions

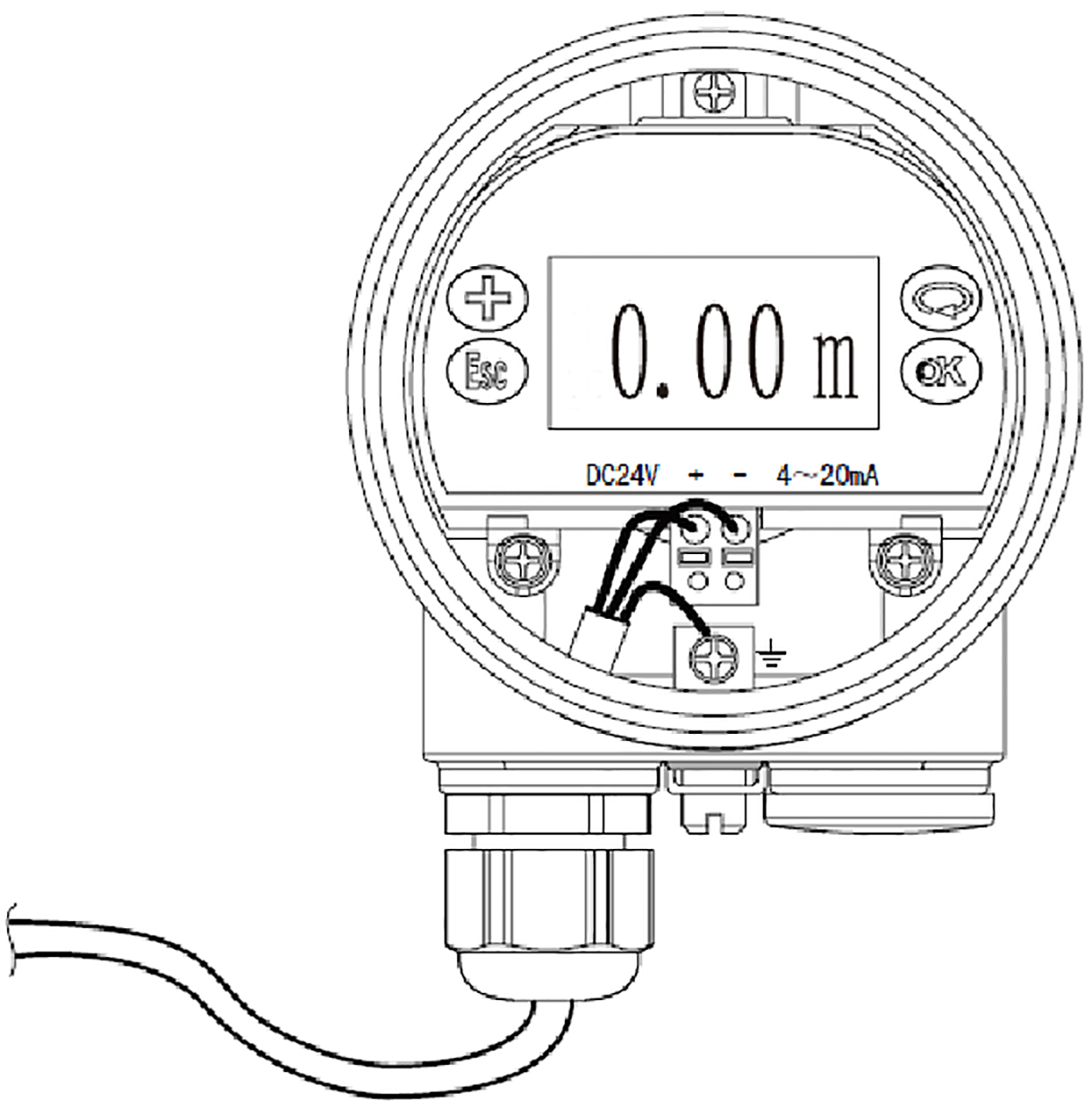

Wiring diagram
