FD63EC0 flat plate magnetostrictive displacement sensor is a cost-effective flat type product, suitable for installation on the surface of the machine, or some small outside space. It can be used in fluid power, rubber, wood, food,automobile, injection molding, energy and other fields.
High cost performance, flat plate type
The highest resolution is 10μm
Analog voltage output
Absolute position output, start and stop position full range adjustable, not affected by power loss
Aluminum profile completely closed design, protection class IP65
Suspension magnet non-contact measurement, never wear
Reliable operation, core components are impact, vibration, EMC testing

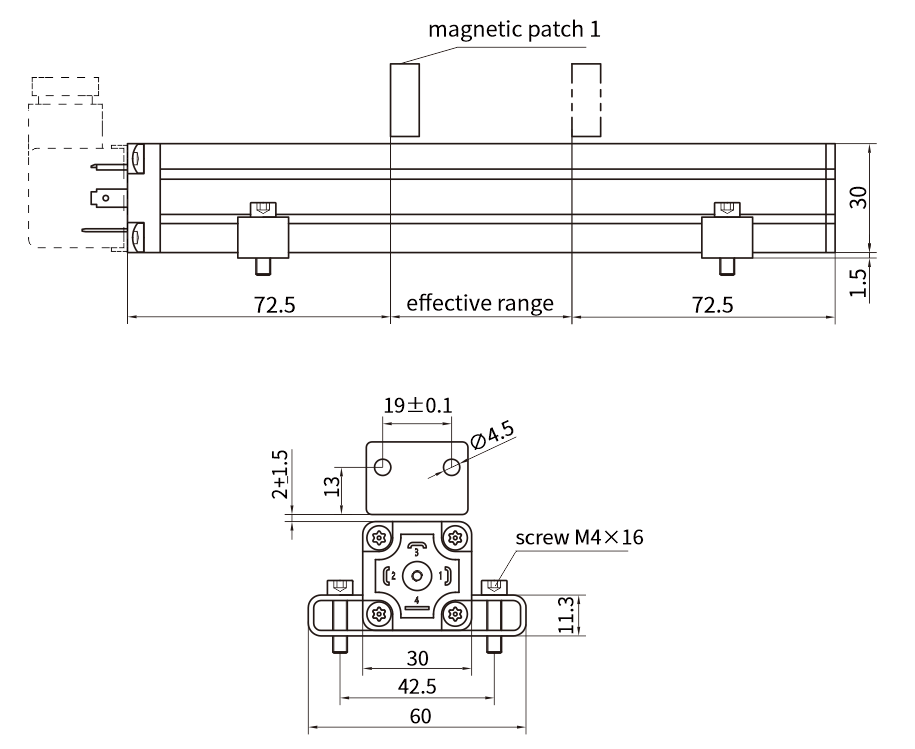

Overall dimensions

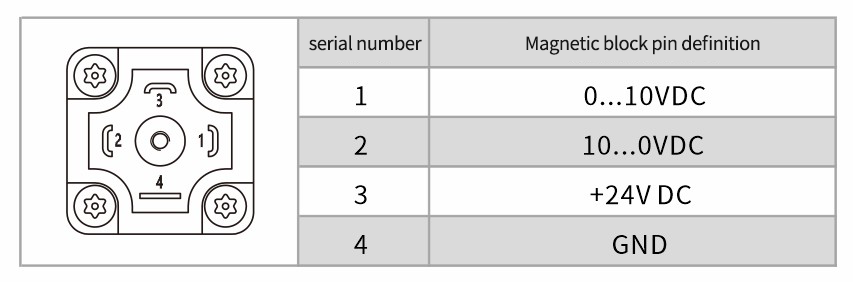

Wiring diagram
