FD-L200

The FD-L200 laser rangefinder is designed to measure the distance of fixed or moving objects.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Natural Things Decent 0.1... 100m, up to 450m with reflectors

Measuring accuracy ±3mm / ±1mm

Using a visible laser beam, it is easy to aim the object under test

The operating voltage range is large and can vary from 10V to 30V

Switching quantity output and analog quantity output are programmable

Alarm distance range can be set

Optional output signal interface: RS232, RS422, SSI, Profibus, Profinet

Variety of startup measurement modes

Basic parameters

Measuring range0.1…100m，The reflector can reach 450m

Measurement accuracy±3mm（Standard）；
±1mm（High precision model）

Resolution0.1mm

Repeatability0.5mm

Laser Classclass 2 According to EN60825，C.D.R.H

Laser divergence angle0.6mrad

Electrical parameters

Power supply10…30VDC

Digital outputProgrammable

Analog output4…20mA

Communication interfaceRS232 ， RS422，Profibus，Profinet，SSI

Mechanical parameters

Overall dimension205×93×60mm（L×W×H）

Installation dimension82×84mm

Weight1Kg

Environmental conditions

Operating temperature﹣10…+50℃

Storage temperature﹣20…+70℃

Protection classIP65

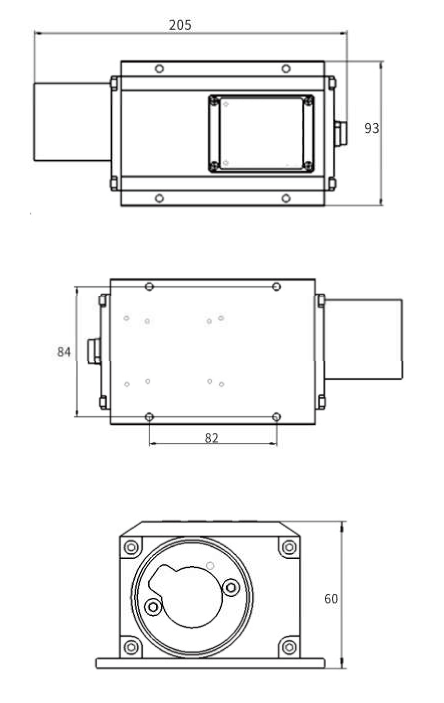

Overall dimensions

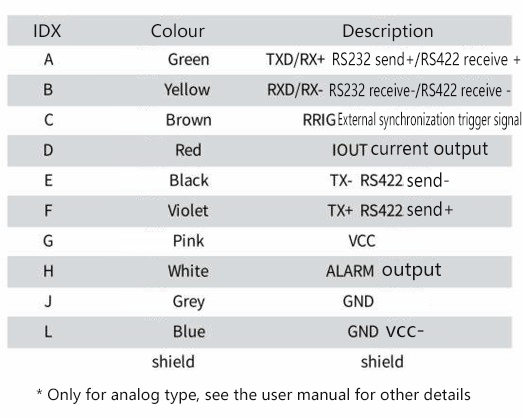

Wiring diagram

FD-L200接线图 - 英~1.jpg
