FD−L200T

FD−L200T

The FD-L200T laser rangefinder is designed to measure the distance of fixed or moving objects.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

The surface of natural objects can be up to 100m, and the reflector can be up to 450m

White surface accuracy up to ±2mm, natural surface ±3mm

RS232/ analog 4...20mA/ switching output

The working voltage range is large, which can be changed from 12V to 30V

Special protective cover, can adapt to harsh working environment

Class II safe visible laser beam is used for easy targeting of the object under test

Rugged, compact housing, easy to install, protection standard IP67

Basic parameters
Measuring range0.05…100m，The reflector can reach 450m
Measurement accuracy±2mm（white surface，+15℃...+30℃）
±3mm（natural surface，+15℃...+30℃）
±5mm（-10℃...+50℃）
Resolution0.1mm
Repeatability±0.7mm
Measuring laserWavelength650nm（red），Beam divergence
angle：0.16 x 0.6 mrad，P≤1mW
Laser ClassClass 2 , According to IEC / EN 60825 -1: 2014
standard
Laser Angle error＜1°
Electrical parameters
Power supply12…30VDC，0.15A/0.2A
Communication interface 1RS232 Maximum baud rate：115200
Communication interface 2Programmable analog output（4…20mA）
Communication interface 3Programmable digital input/output
Digital inputHigh level: 9VDC＜UDI1＜30VDC ;
Lower level: DI1＜2VDC
EMCIEC/EN 61000-6-4 / 61000-6-3；
IEC/EN 61000-6-2 / 61000-6-1
Mechanical parameters
Connector12-core connector
Sensor size280×154×170mm（L×W×H）
Weight4Kg
Environmental conditions
Operating temperature﹣10…+60℃（Use water cooling when
the temperature exceeds 50 ℃）
Storage temperature﹣20…+70℃
Shock resistance10g/6ms，DINISO 9022-3-31-01-1
Protection classIP67，AL
Average service life50000小时，Service temperature +25 °C
Cooling parametersAir cooling + air purge; Water cooling + air purge
Pressure5...15PSI；rate of flow：28...140L/min
Water gage5...10PSI；rate of flow：0.2...03L/min

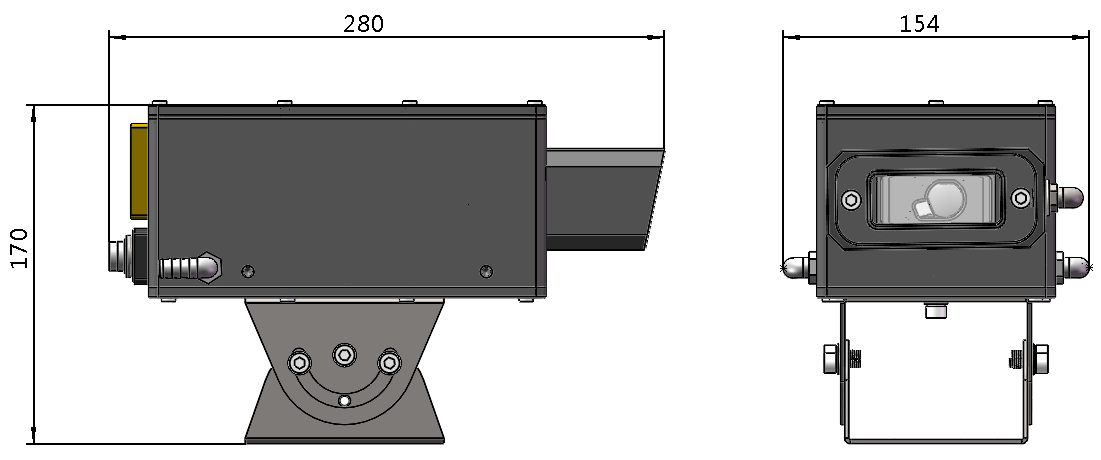

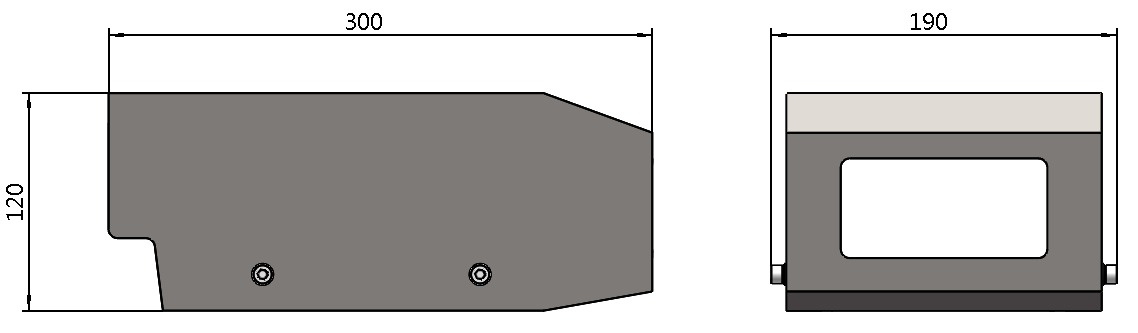

Overall dimensions





Unit : mm

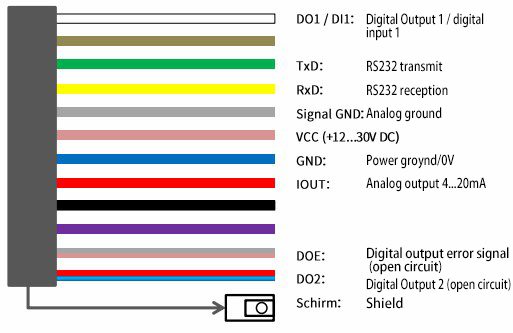

Wiring diagram
