FD−L200T

FD−L200T

The FD-L200T laser rangefinder is designed to measure the distance of fixed or moving objects.

For detailed product selection, please contact us Return

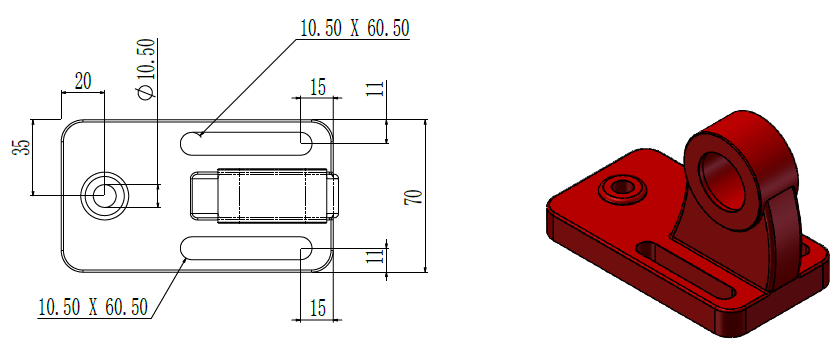

Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

The surface of natural objects can be up to 100m, and the reflector can be up to 450m

White surface accuracy up to ±2mm, natural surface ±3mm

SSI output signal

The working voltage range is large, which can be changed from 12V to 30V

Special protective cover, can adapt to harsh working environment

Class II safe visible laser beam is used for easy targeting of the object under test

Rugged, compact housing, easy to install, protection standard IP67

Basic parameters
Measuring range0.05…100m，The reflector can reach 450m
Measurement accuracy±2mm（white surface，+15℃...+30℃）
±3mm（natural surface，+15℃...+30℃）
±5mm（-10℃...+50℃）
Resolution0.1mm
Repeatability±0.7mm
Measurement time20ms white surface（50HZ)
Measuring laserWavelength650nm（red），Beam divergence
angle：0.16 x 0.6
mrad，P≤1mW
Laser ClassClass 2 , According to DINEN 60825 -1 : 2007
(EC825-1) standard
Laser Angle error＜1°
Electrical parameters
Power supply12…30VDC
Power consumption: < 0.4W in standby mode
and 3.6W in measurement mode（24V)
Communication interface 1SSI communication, binary or gray code, MSB
preferred (configurable)
Propagation rate: 83KHZ...1MHz, depending on
cable length signal input to signal output
Differential signal (RS422), 25bit (24 bit
data bit +1 bit error bit)
500V electrical isolated signal input
Communication interface 2RS232 Maximum baud rate：115200
Communication interface 3RS422 interfaces cannot be used with SSI
interfaces at the same time
Maximum driving load：≥ 100 Ω
Digital inputHigh level: 9VDC＜UDI1＜30VDC ;
Lower level: DI1＜2VDC
EMCEN 61000-6-2，EN55011
Mechanical parameters
Connector15-core connector
Sensor size357×255×78mm（L×W×H）
Weight1.9Kg
Environmental conditions
Operating temperature﹣10…+80℃（Use water cooling when
the temperature exceeds 50 ℃）
Storage temperature﹣20…+70℃
Shock resistance10g/6ms，DINISO 9022-3-31-01-1
Protection classIP67，AL
Average service life30000H，Service temperature +25 °C
Cooling parametersAir cooling + air purge; Water cooling + air purge
Pressure5...15PSI；rate of flow：28...140L/min
Water gage5...10PSI；rate of flow：0.2...03L/min

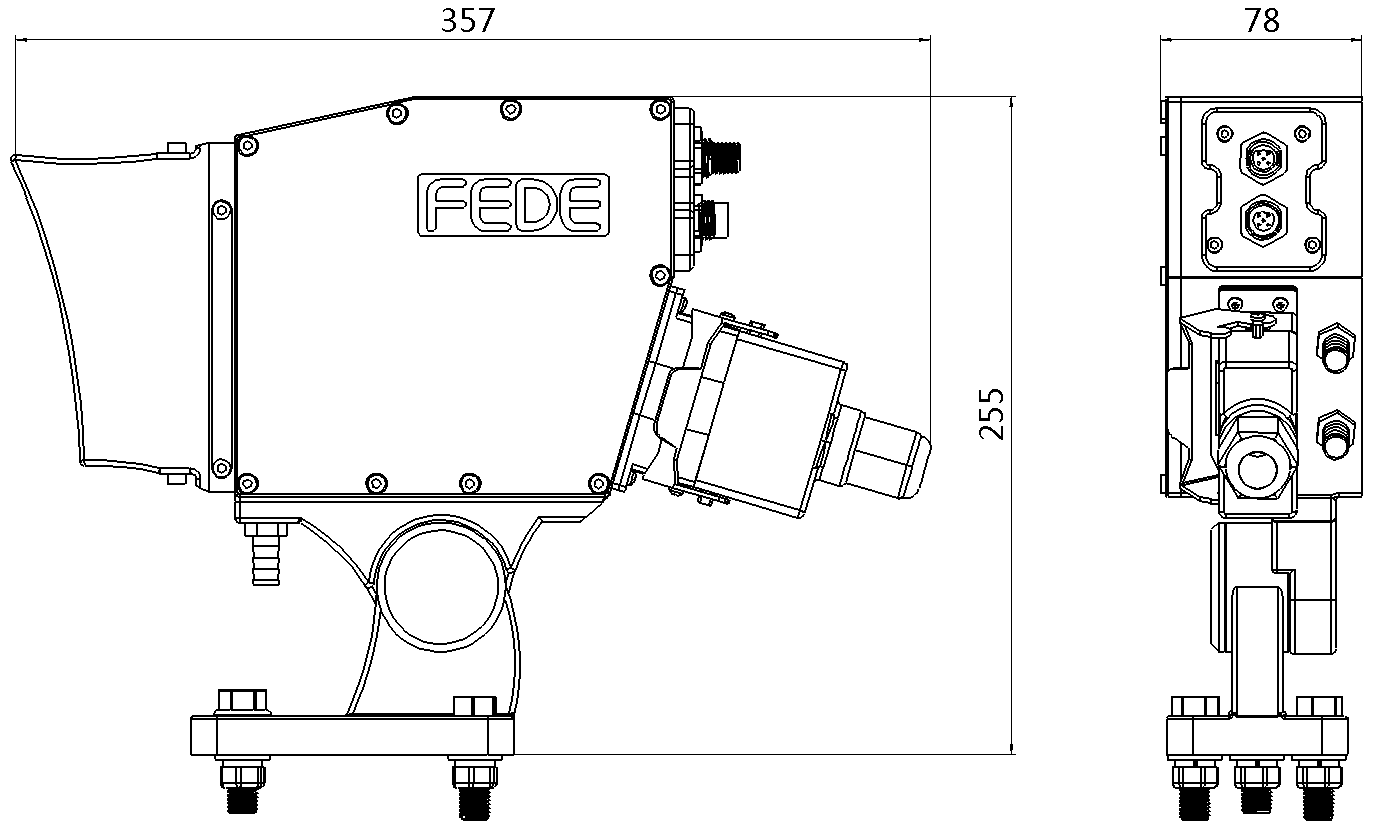

Overall dimensions





Unit : mm

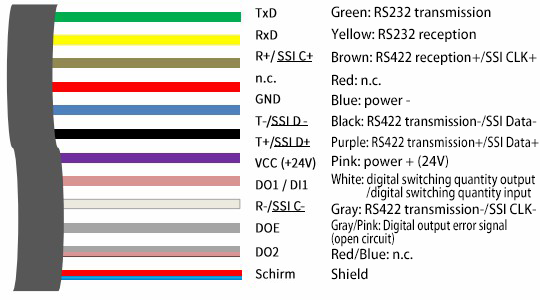

Wiring diagram
