FD20.50 float level switch adopts non-contact operation mode, long service life, can be used in harsh environment, without maintenance, with high stability, high reliability, high repeatability and other technical characteristics. It is widely used in level measurement, level monitoring and level safety control. Its typical application for industrial water level, oil level, water heater, water dispenser, humidifier, etc.
The measurement range is optional
Adopt imported plastic seal reed pipe, long service life
Horizontal and vertical installation is optional
Plastic material, stainless steel material is optional
Float type is optional
Rich process connections
Special seal design, protection class up to IP67

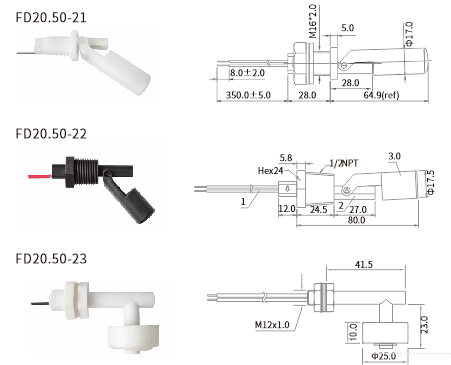

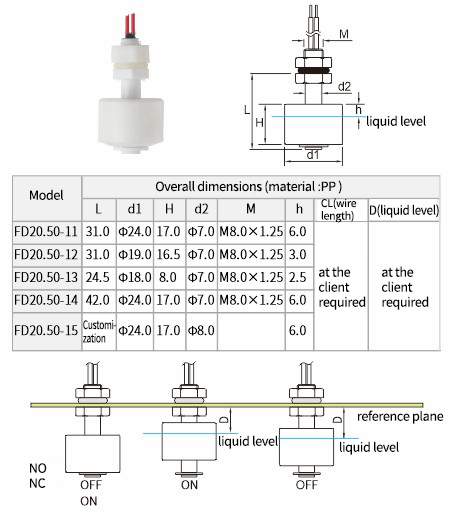

Overall dimensions
Note : For other models, please refer to the product technical specification
