FD-LRW80 region-scanning lidar adopts the time-flight (TOF) ranging principle and integrates cutting-edge technologies of optics, electricity, mechanical kinematics and other multidisciplinary fields to achieve accurate measurement of 3cm repeatable accuracy
within the range of 270° field of view and 120m distance. The products can be used in special vehicle scenarios such as rail crane, tire crane, shore bridge, door crane, ship unloader, and robot control.
Type of example：FD-LRW80A-R1WZ.*
Laser protection level 1, eye safety
Wide field of view: Scanning Angle is 270°
Long distance: 0...120m and 80m at 10% reflectance
High precision: Accuracy up to 3cm
High speed: scanning frequency up to 100Hz
Intelligent echo processing technology, can adapt to rain, fog, snow and other harsh environment
Built-in automatic temperature control design, even in the outdoor low temperature -40℃ can be normal operation
Seal protection class IP67
2 channel switch output, can be directly connected to anti-collision system

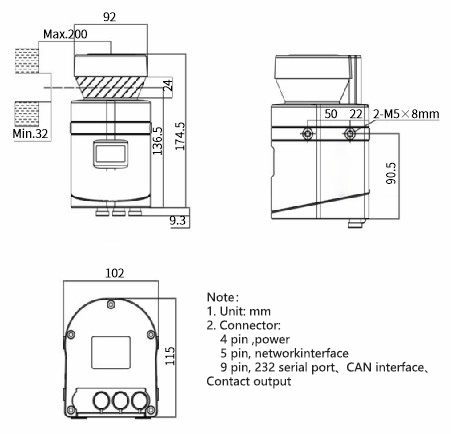

Overall dimensions

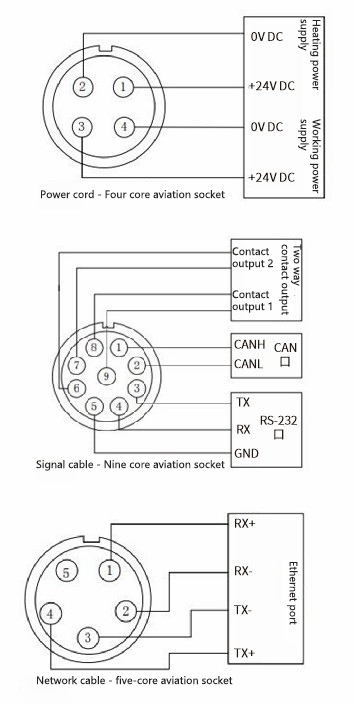

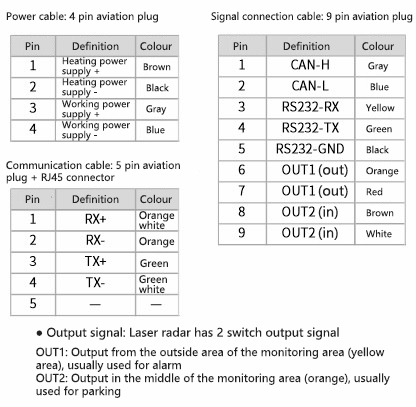

Wiring diagram
