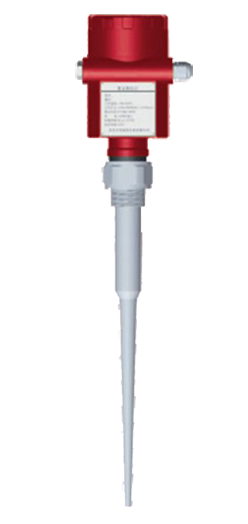

FD30.10 rod antenna level meter is suitable for measuring the liquid level and height of corrosive liquid and slurry(for example: sewage storage tank, acid-base storage tank, slurry storage tank).
Type of sample: FD30.10-117L1.100.010.*
Rod antenna
Measurement range 0...20m
It can measure all solid and liquid media with dielectric constant > 1.8
Threaded and flanged connection
Non contact measurement, no wear, no pollution
Accuracy ± 8mm, resolution 1mm
Two wire loop power supply
4...20mA output or digital signal output
The process temperature can reach 120 ℃
The process pressure can reach - 0.1...0.3MPa
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the changes of medium density, viscosity and temperature
Overall dimensions
Wiring diagram
