FD-EA

FD-EA side pressure gravity sensor, mainly used in wire rope overload, over limit load control.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The maximum rated load is 5t

Sensitivity 0.7±0.1mV/V

Accuracy level 0.5

Rated excitation voltage 10...12VDC

Insulation resistance ≥5000MΩ

Safe load 150%F.S

Damage load 200%F.S

Basic parameters

Rated load1，2，3，5T

Accuracy class0.5

Sensitivity 0.7±0.1mV/V

Linear error ±0.5%F.S

Hysteresis error±0.5%F.S

Creep（30 minutes）±0.05%F.S

Zero temperature effect±0.1%F.S/10℃

Temperature effect on sensitivity±0.1%F.S/10℃

Safety load150%F.S

Breaking load200%F.S

Electrical parameters

Rated excitation voltage10…12VDC

Input impedance400±50Ω

Output impedance352±3Ω

Insulation resistance≥5000MΩ

Mechanical parameters

MaterialAlloy steel

Cable0.3m

Environmental conditions

Operating temperature﹣30…+70℃

Protection classIP67

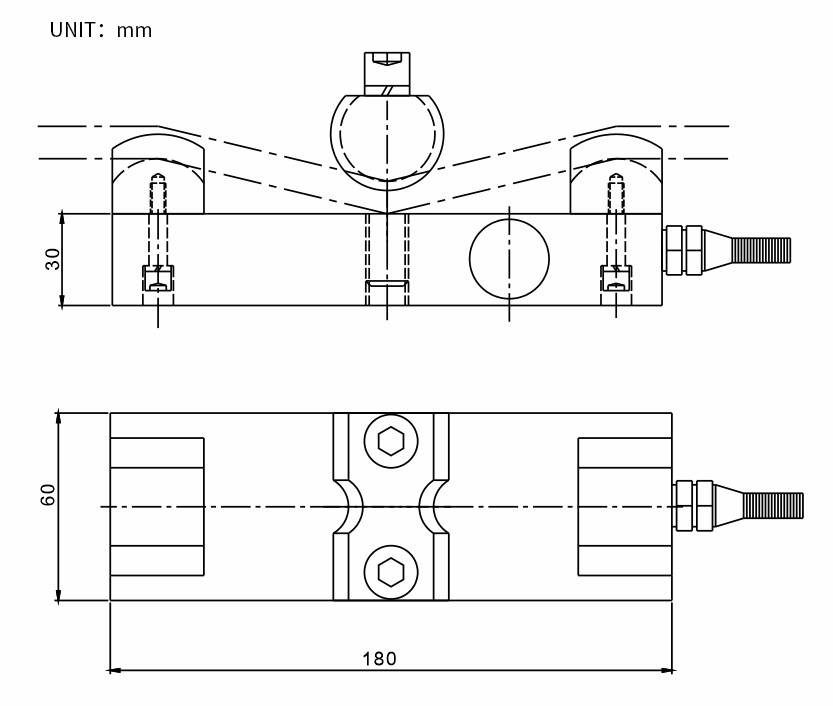

Overall dimensions

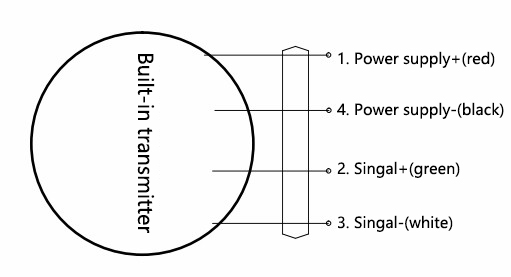

Wiring diagram
