FD30M-06

The FD30M-06 level sensor is suitable for situations where the level changes very quickly.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The detection range is up to 6 meters

Fast response algorithm, suitable material level changes very quickly

The blind zone is only 350mm

It is convenient to set parameters and debug by pressing buttons

Output analog and switching signals

Built-in temperature compensation

Good stability, fast response speed

Basic parameters

Detection range350…6000mm

Adjustable range400…6000mm

Dead range0…350mm

Repeatability≤0.2%F.S

Response delay280ms

Resolution ratio1mm

Electrical parameters

Working voltage10…30VDC

Analog output4…20mA or 0…10V

Digital output1×push pull

Output frequencyAbout 85KHz

No-load current＜50mA

load impedanceat 4…20mA，≤300Ohm；at 0…10V，≤1K Ohm

Mechanical parameters

Standard target plate100mm×100mm

ConnectionM12 connector（5 pin）

Environmental conditions

Environment temperature﹣25…70℃

Storage temperature﹣40…85℃

Temperature drift≤2%F.S

Protection classIP67

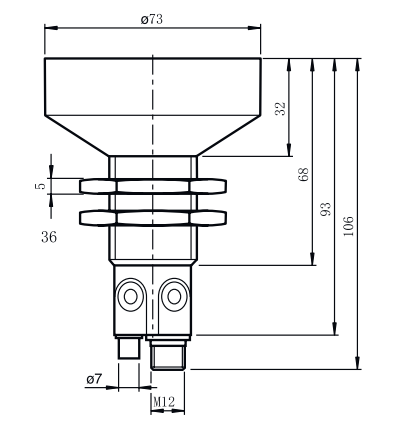

Overall dimensions

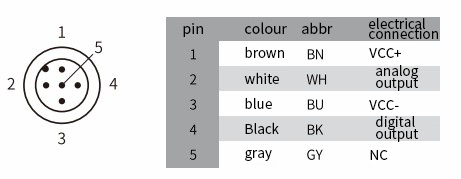

Wiring diagram
