FD40C1

FD40C1

FD40C1 material level sensor, mainly used in small scale material level detection.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Detection range 90...2000mm

Built-in IO-Link communication interface, can be used for parameter setting and debugging

Dead zone 0...90mm

Sound cone width is optional, switch mode is optional

Output analog and switching signals

Built-in synchronization, temperature compensation function

Good stability, fast response speed

Basic parameters
Detection range90…2000mm
Adjustable range120…2000mm
Dead range0…90mm
Repeatability≤0.1%F.S
Response delayFactory settings≤125ms，can set
AccuracyDetection range【mm】/4000，but≥0.35mm
Electrical parameters
Working voltage10…30VDC
Analog output4…20mA or 0…10V can set
Digital output1×push pull
Output frequencyAbout 200KHz
No-load current≤60mA
load impedanceCurrent output≤300Ω，voltage output≥1000Ω
Mechanical parameters
Standard target plate100mm×100mm
ConnectionM12 connector（5 pin）
Environmental conditions
Environment temperature﹣20…70℃
Storage temperature﹣40…85℃
Temperature drift≤1.5%F.S (Temperature compensated ) ;
≤0.2%/K (No temperature compensation)
Protection classIP65/67

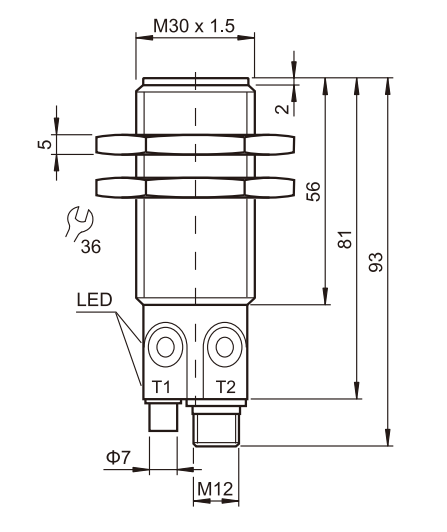

Overall dimensions

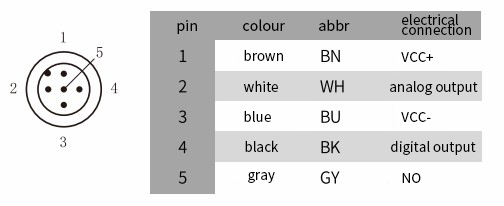

Wiring diagram
