PQ08B

PQ08B photoelectric switch is used in general industries, such as packaging, logistics, machinery manufacturing and other fields.
Type of sample：PQ08B.11PS2Y.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Background suppression, specular reflection, full range of reflection

Long range PQ08B.43, detection distance up to 100cm

The enhanced emission beam effectively responds to harsh environments such as fog

Specular reflection type, blind area can be as small as 1cm

Dc power supply or AC/DC power supply available

The DC powered connector connector can be rotated for easy installation

Cable or connector optional

Protection level IP67

Basic parameters

Detect distanceThrough beam：70m
Specular reflector type：0.01…12m
Background suppression type：long distance 250
…1000mm / middle distance 150…500mm /
short distance 100…300mm

SourgeRed LED

Response timeDC type：Through beam /Specular reflector type:
0.5ms max.
Background suppression for long range: 3ms max.
Background suppression medium/short
range: 2ms max.
AC/DC type：15ms max.

Hysteresis phenomenonDC type：
Background suppression for long range: 15% max
Background suppression medium / short
range: 5% max
AC/DC type：
Background suppression for long range: 20% max
Background suppression medium / short
range: 5% max

Sensitivity adjustmentTwo-turn regulator

Indicator lightOutput indicator (orange LED) / Stability indicator
(green LED)

Electrical parameters

Power supplyDC type：10…30V DC±10%
AC/DC type：24..240VDC±10%，24…240VAC±
10%,50/60Hz

Current consumptionDC type: 35mA max.
AC/DC type:【through beam: 3VA max.(class A)
/4VA max.(class B)；Mirror reflection
type / background suppression type: 2VA
max.(class A) / 2.5VA max.(class B) 】

Digital output DC type：PNP or NPN open collector，≤100mA /
30VDC ( residual voltage1.8V max)
AC/DC type：
Relay output DC30V 2A/AC 250V 3A max

NO/NC modelDC type：NO / NC optional
AC/DC type：NO

Mechanical parameters

MaterialShell：ABS（Glass-containing fibre）
Front panel：PC(Specular reflection type adopts
PMMA）

Protection classIP67

Environmental conditions

Environmental temperature/humuidity﹣25…+55℃/35…85%RH（non-condensing）

Storage temperature/humuidity﹣40…+70℃/35…95%RH

Ambient light illuminationSunshine≤10000lux，Incandescent light≤3000lux

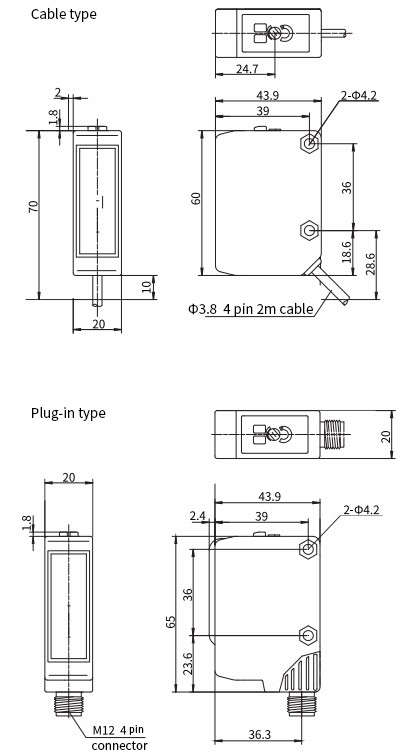

Overall dimensions

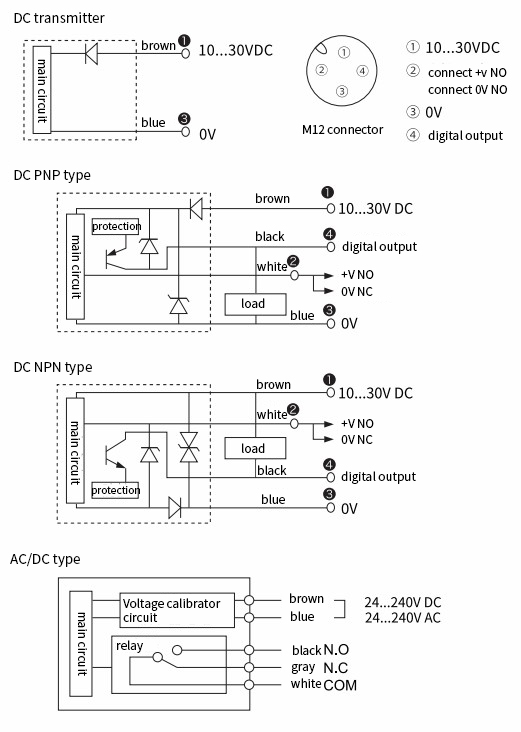

Wiring diagram


Brochures

Manuals

CAD/CAE

Certificate
