PF06C

PF06C photoelectric switch is mainly used in general industries, can be used in packaging printing, non-ferrous metals, warehousing logistics, robots and other fields.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Small square cylindrical appearance

Visible red light is used for easy alignment and debugging

On/dark on can be set

With action signal output indicator and power indicator

Short-circuit protection

Optional M18 screw mounting/side screw mounting

Basic parameters

Detect distanceThrough beam：20m
Specular reflection type：4m
Diffuse reflection type：100mm / 300mm /
500mm/1m

Response time≤1ms

Light source diameter40*50mm(Distance up to 1m)；120*150mm
（1m Distance）

Light source Visible/invisible light optional

Low Response＜20% detect distance

Electrical parameters

Power supply10…30V DC

Residual voltage≤15%DC

Open-circuit current≤25mA

Protective current1.2 times

Output current≤100mA

Signal voltage≤2V

Output typePNP or NPN，NO or NC

Capacitively loaded≤0.2μF

Mechanical parameters

Mounting and fixingM3 nut fixed

Connection Type4 Line /4 pin

Electrical connection2m cable / M12 connector

Housing MaterialABS plastic

Product size31*15*35mm（L*W*H）

Environmental conditions

Environmental temperature﹣25…+55℃

Storage temperature﹣40…+70℃

Protection classIP67

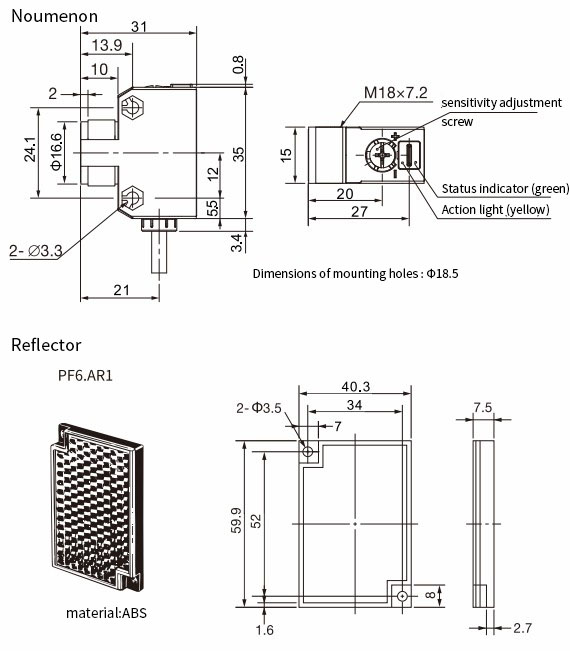

Overall dimensions

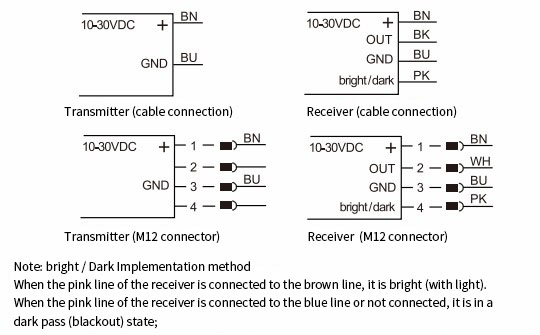

Wiring diagram
