FD100.10A-F4090

The FD100.10A-F4090 incremental solid shaft encoder can be used in the fields of servo motors, elevators, industrial robots, and industrial automation control production lines.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

40.5mm square all metal structure, sturdy and durable

Optical sensing, maximum speed 12000 rpm

Integrated design of shaft end cover

IP67 protection, temperature resistance of 80 ℃

Short circuit protection

Basic parameters

Square size40.5mm

Shaft diameter6mm

Maximum RPM12000rpm

maximum axle load——

Starting torque＜2Ncm

Rotational inertia＜40gcm2

Electrical parameters

Power supply10…30VDC / 5VDC

InterfacePush pull/wire drive output

Maximum response frequency450KHZ

Maximum consumption current＜90mA

Maximum rise fall time200ns（line driver）
1μs（Other output）

Number of pulses50,60,100,200,300,360,400,500,600,800,1000
1024,1200,1500,1800,2000,2048,2500

Electrical connectionsCable

Mechanical parameters

Flange type——

MaterialsAll-metal

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Humidity90% without condensation

Protection classIP67

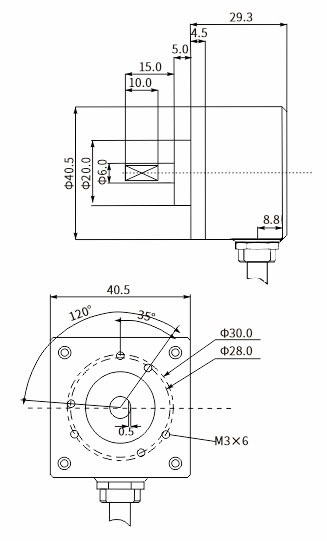

Overall dimensions

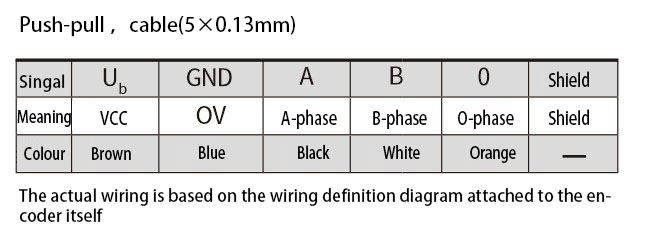

Wiring diagram
