FD100.20X-F40940

The FD100.20X-F40940 absolute value solid shaft encoder can be used in the fields of servo motors, elevators, industrial robots, and industrial automation control production lines.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

40.5mm square all metal structure, sturdy and durable

Absolute parallel signal output

Maximum 12 bit resolution per lap

Integrated design of shaft end cover and added sealing device to prevent oil leakage effectively

IP67 protection, temperature resistance of 80 ℃

Short circuit protection

Basic parameters

Square size40.5mm

Shaft diameter6mm

Permissible speed6000rpm

maximum axle load——

Starting torque＜1Ncm

Rotational inertia＜30gcm2

Electrical parameters

Power supply10…30VDC

InterfaceParallel push pull output, axial clockwise
increasing

Output codeGray code

Working current＜50mA

Resolution8bit（256），9bit（512），10bit（1024），
11bit（2048），12bit（4096）

AccuracyRepeatability ±2bit (actual accuracy is related
to installation accuracy and shaft
concentricity)

Mechanical parameters

Flange typeClamping flange

MaterialsAll-metal

Environmental conditions

Operating temperature﹣25…+80℃

Storge temperature﹣40…+80℃

Humidity90% without condensation

Protection classIP67

Overall dimensions

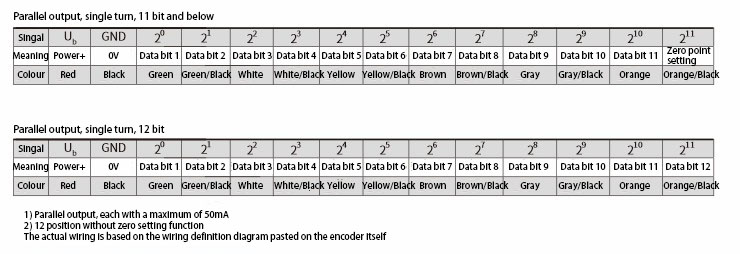

Wiring diagram
