FD-EK

FD-EK gasket force sensor, mainly used in wire rope overload, over load control.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Maximum rated load is 5t

Sensitivity 1.0...2.0±0.1 mV/V

Nonlinear accuracy ±0.1%F.S

Rated excitation voltage 5...12VDC

Insulation resistance ≥2000 MΩ

Safe overload 120%F.S

Basic parameters

Load rating50Kg，100Kg，200Kg，300Kg，500Kg，1T，2T，3T，5T

Sensitivity1.0…2.0±0.1mV/V

Non-linearity≤±0.1%F.S

Hysteresis eeror≤±0.1%F.S

Repeatability≤±0.1%F.S

Creep（30min）≤±0.1%F.S

ZERO OUTPUT≤±2%F.S

Zero temperature coefficient≤±0.05%F.S/10℃

Temperature coefficient of sensitivity≤±0.03%F.S/10℃

Safe load≤120%F.S

Electrical parameters

Rated excitation voltage5…12VDC

Input resistance735±35Ω

Output resistance700±3Ω

Insulation resistance≥2000MΩ

Mechanical parameters

MaterialStainless steel

CableΦ6，Length can be customized

Environmental conditions

Working environment﹣20…+60℃

Protection classIP67

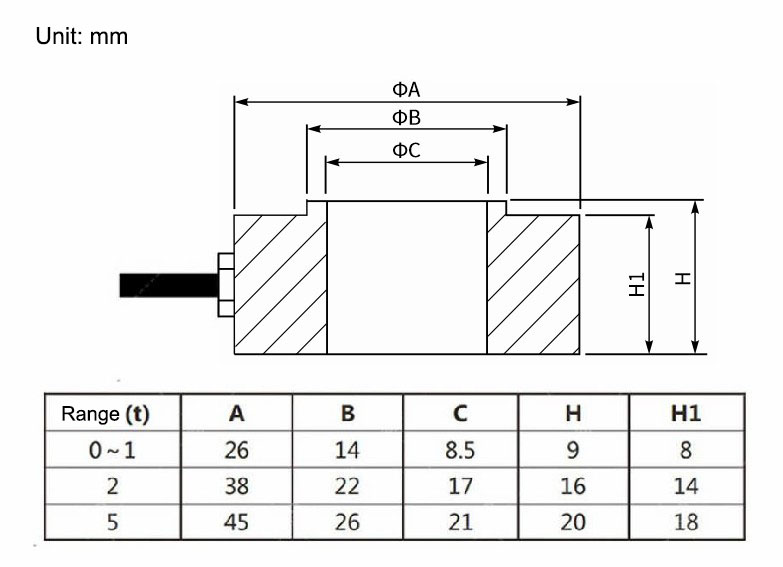

Overall dimensions

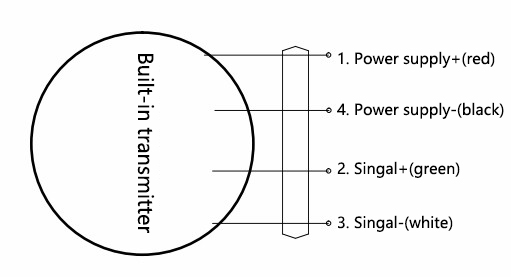

Wiring diagram
