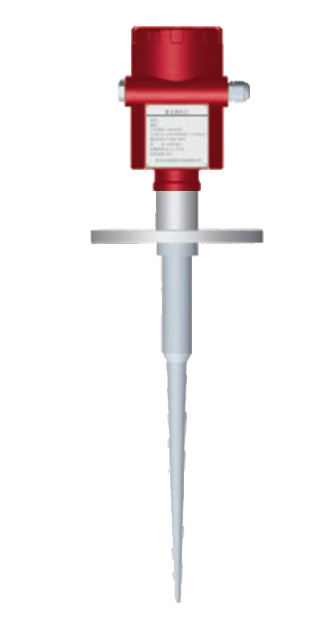

FD30.20 rod antenna level meter, suitable for corrosive liquids in storage or process containers liquid level height measurement of slurry (e.g. water liquid storage tank, acid-base storage tank, slurry storage tank).
Type of sample: FD30.20-1122.10010.*
Rod antenna
Measurement range 0...20m
It can measure all solid and liquid media with dielectric constant > 1.8
Flange connection
Non contact measurement, no wear, no pollution
Accuracy ± 8mm, resolution 1mm
Two wire loop power supply
4...20mA output or digital signal output
The process pressure can reach - 0.1...1.6MPa
The process temperature can reach 150 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the changes of medium density, viscosity and temperature

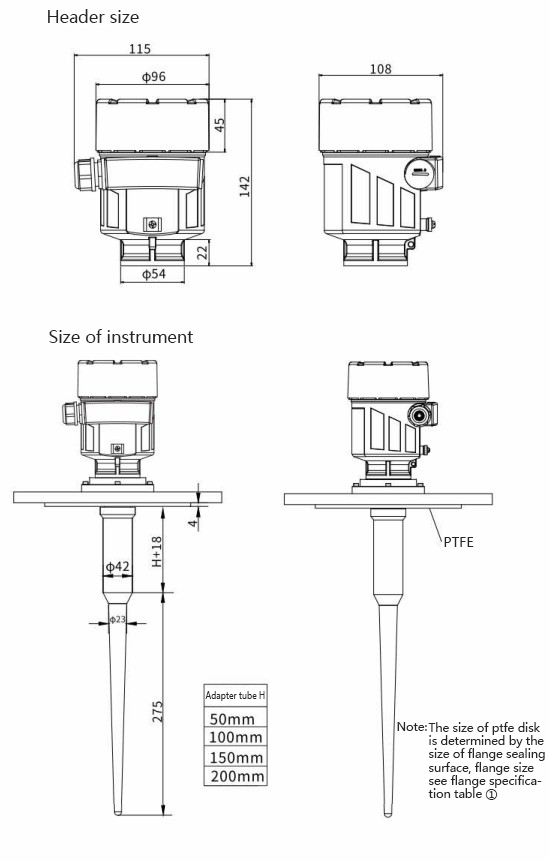

Overall dimensions

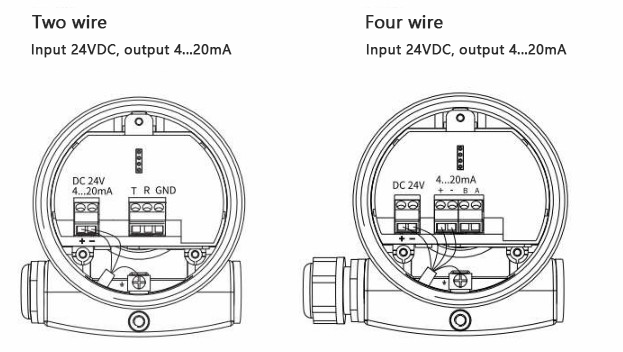

Wiring diagram
