The FD-LRW25 obstacle avoidance LiDAR is a product for collision avoidance of indoor equipment and intelligent area
detection. It is suitable for low-speed special vehicles such as port rail crane, coal mine car, unmanned sweeper, environmental protection car and electric vehicle.
Type of example：FD-LRW2510A-P1Z.10100210
The TOF scheme can realize the detection and protection of 270-degree field of view Angle and the maximum range of 25m
Laser protection level 1, human eye safety
Large field of view, long distance, high speed accurate measurement
Precise temperature control design, working temperature range -25℃...+ 50 ℃
Reliable closed design, protection class IP65

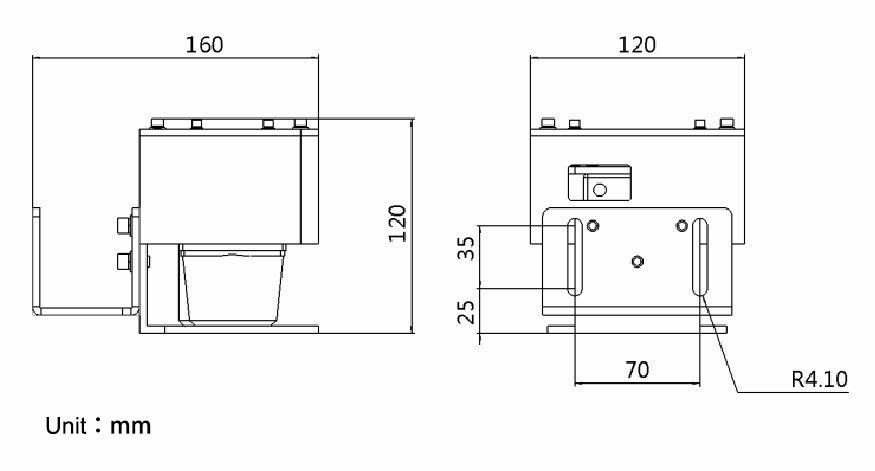

Overall dimensions

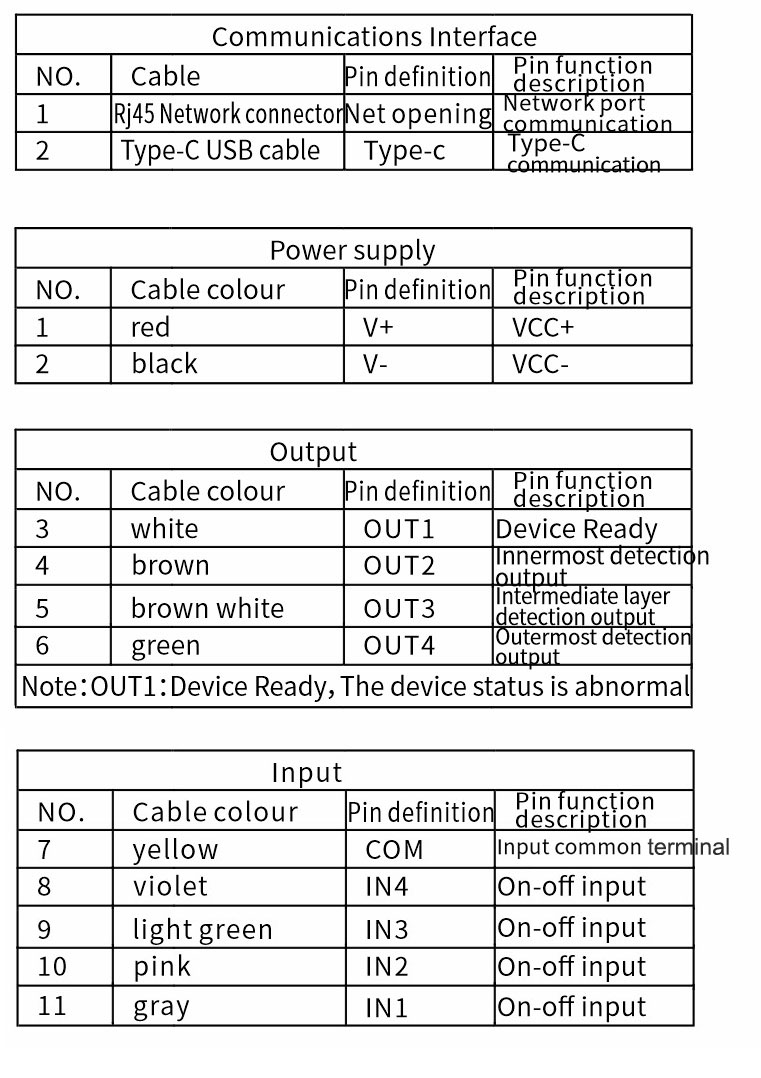

Wiring diagram
