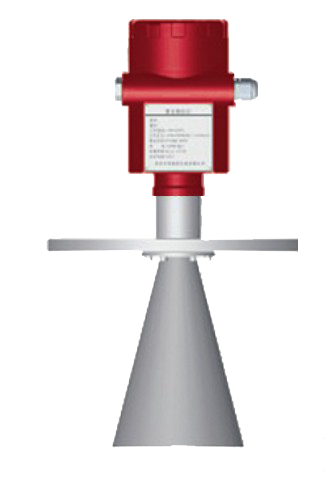

FD30.30 horn antenna level meter is suitable for measuring the liquid level and height of various storage containers, liquids and slurries (for example: crude oil, light oil storage tank,volatile liquid storage tank, slurry storage tank).
Type of sample: FD30.30-1120L.20010.*
Horn antenna
Measurement range 0...30m
It can measure all solid and liquid media with dielectric constant > 1.8
Flange connection
Non contact measurement, no wear, no pollution
Accuracy ± 8mm, resolution 1mm
Two wire loop power supply
4...20mA output or digital signal output
The process pressure can reach - 0.1...2.0MPa
The process temperature can reach 250 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the changes of medium density, viscosity and temperature

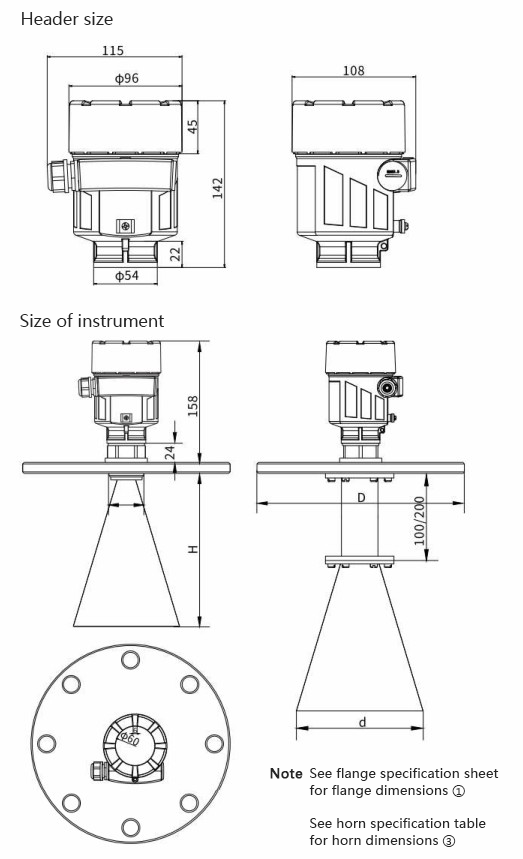

Overall dimensions
Wiring diagram
