FD30.40 horn antenna level meter is applicable to solid particles and lumps material level height measurement (e.g. source coal bunker, pulverized coal bunker, coke level, etc.).
Type of sample: FD30.40-3120.20010.*

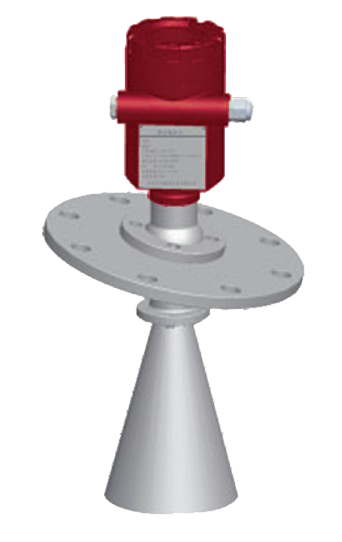

Horn antenna
Measurement range 0...30m
It can measure all solid and liquid media with dielectric constant > 1.8
Universal flange connection
Non contact measurement, no wear, no pollution
Accuracy ± 15mm, resolution 1mm
Two wire loop power supply
4...20mA output or digital signal output
The process pressure is atmospheric pressure
The process temperature can reach 250 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the changes of medium density, viscosity and temperature

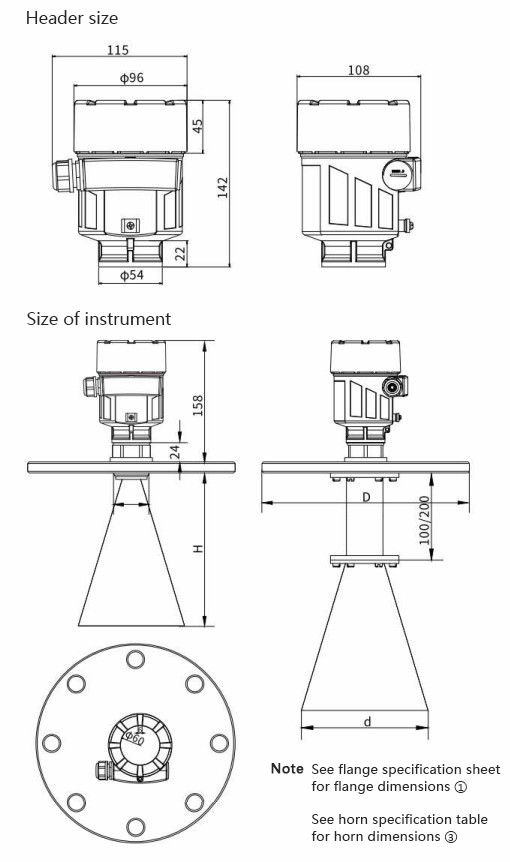

Overall dimensions
Wiring diagram
