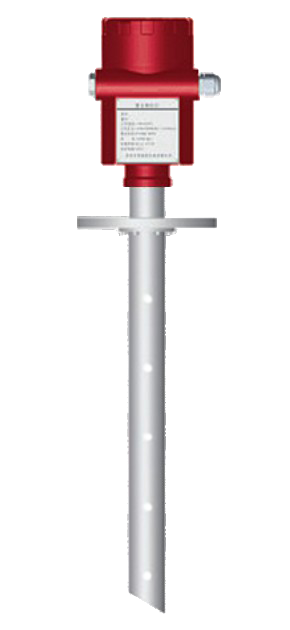

FD30.50 guided wave tube level meter is suitable for liquid level measurement of transport ships in shipbuilding industry measurement of liquid level height of liquid storage tank with low dielectric constant and liquid storage tank with agitator.
Type of sample: FD30.50-113L.20010.*
Rod antenna
Measurement range 0...20m
It can measure all solid and liquid media with dielectric constant > 1.6
Flange connection
Non contact measurement, no wear, no pollution
Accuracy ± 8mm, resolution 1mm
Two wire loop power supply
4...20mA output or digital signal output
The process pressure can reach - 0.1...2.0MPa
The process temperature can reach 250 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the changes of medium density, viscosity and temperature

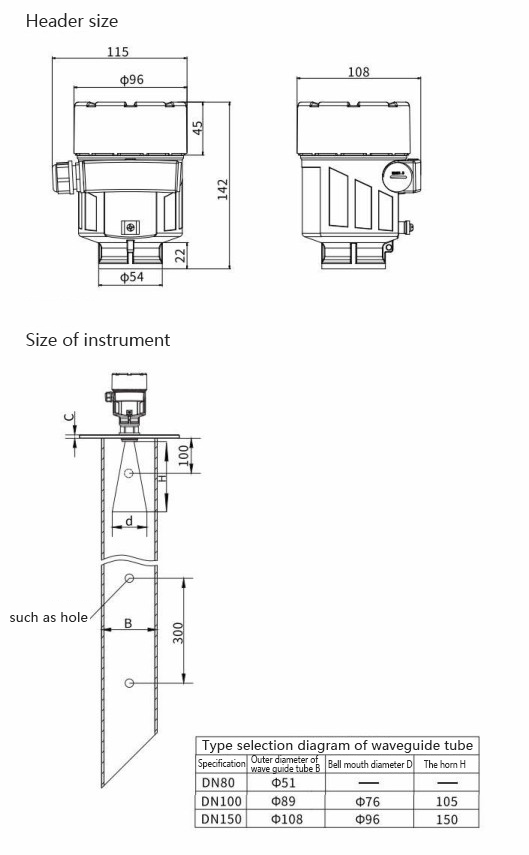

Overall dimensions
Wiring diagram
