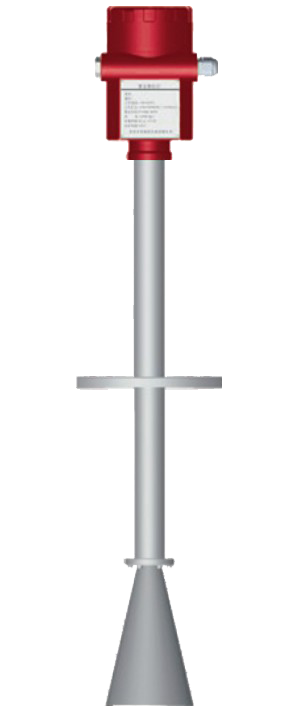

FD30.60 extended level meter, suitable for blast furnace storage tank and high-temperature storage tank solid material level height measurement of storage tank with thick tank roof and storage tank with high installation of short pipe.
Type of sample: FD30.60-3337.20010.*
Horn antenna, extension tube connection
Measurement range 0...30m
It can measure all solid and liquid media with dielectric constant > 1.8
Flange connection
Non contact measurement, no wear, no pollution
Accuracy ± 15mm, resolution 1mm
Two wire loop power supply
4...20mA output or digital signal output
The process pressure is atmospheric pressure
The process temperature can reach 800 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the changes of medium density, viscosity and temperature
Overall dimensions
Wiring diagram
