FD30H.20 small horn level meter, mainly used in petroleum, chemical industry, smelting, water, etc liquid level height measurement of liquid storage tanks in the industry.
Type of sample：FD30H.20-511C0.20010.*
Horn antenna
Measurement range 0...30m
Thread and flange connection styles are optional
Suitable for liquid measurement with temperature resistance, pressure resistance and slight corrosion
Non contact radar, no wear and pollution
The antenna is small in size and easy to install
The measurement blind area is small, and good results will be achieved for small tank measurement
Small beam angle and concentrated energy not only enhance the echo ability, but also help to avoid interferences
It is almost unaffected by the changes of water vapor, temperature and pressure in the atmosphere
High signal-to-noise ratio,Better performance can be obtained even in case of fluctuation

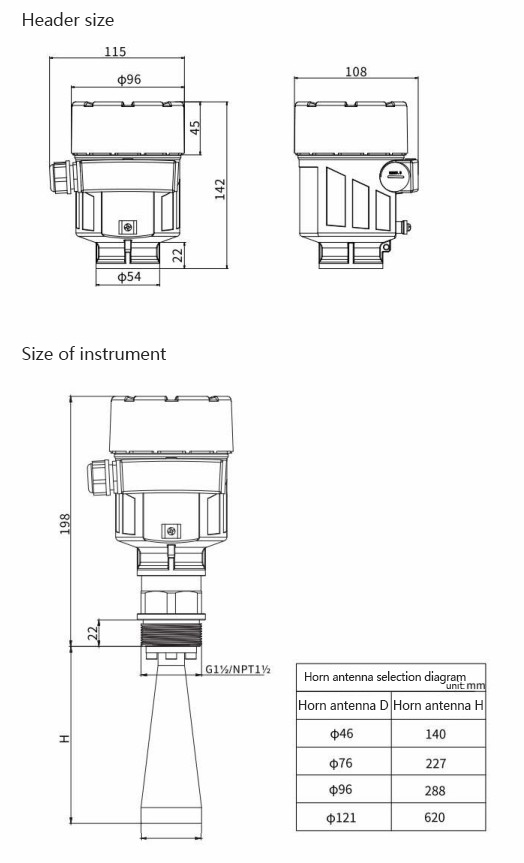

Overall dimensions
Wiring diagram
