FD30H.40 parabolic antenna level meter is mainly used in cement, steel, electric power and coal material level height measurement of solid storage tanks in, building materials and other industries (e.g. powder, block material, granular material).
Type of sample:FD30H.40-111C0.21010.*

For detailed product selection, please contact us Return
Function & Features

Paraboloid antenna

It is mainly used to measure dust and other solids

Measurement range 0...70m

Thread and flange connection styles are optional

It is suitable for solid, storage container, process container or occasions where strong dust is easy to crystallize and condense

Non contact radar, no wear and pollution

The antenna is small in size and easy to install

The measurement blind area is small, and good results will be achieved for small tank measurement

Small beam angle and concentrated energy not only enhance the echo ability, but also help to avoid interferences

It is almost unaffected by the changes of water vapor, temperature and pressure in the atmosphere

High signal-to-noise ratio,Better performance can be obtained even in case of fluctuation

Basic parameters
Measuring range70m
Beam angleΦ196:5°;Φ242:4°
Accuracy±15mm
Repeatability±2mm
Resolution ratio1mm
Electrical parameters
The power supply 24VDC±10%
Frequency range26GHZ
Singal output4…20mA / HART (two wire / four wire)
Mechanical parameters
Process connectionThread、the flange
The antenna materialStainless steel / PTFE
Electrical interfaceTwo M20×1.5 or two NPT
Environmental conditions
Medium temperature﹣60…250℃
Process pressureOrdinary pressure
Explosion-proof gradeExia II CT6
Enclosure protectionIP67

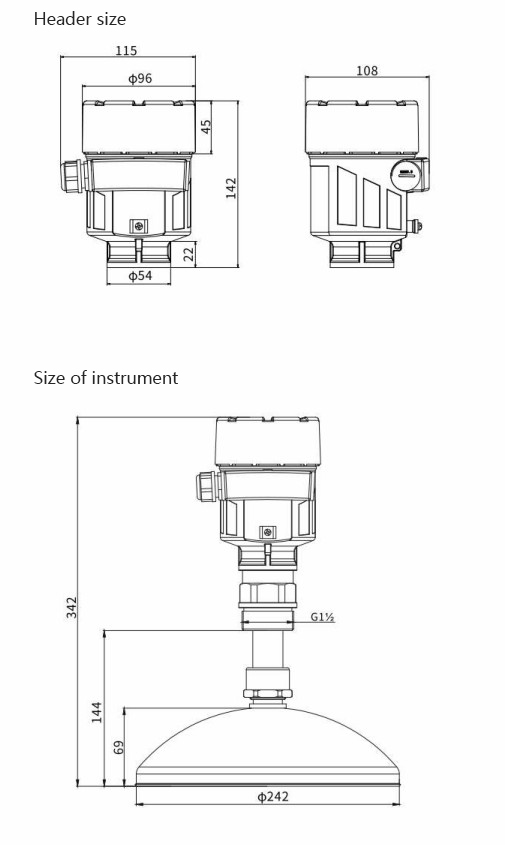

Overall dimensions

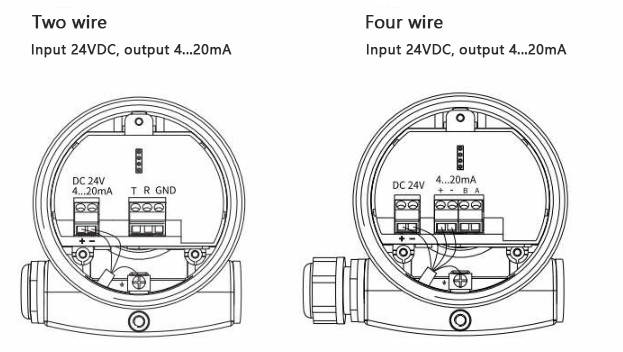

Wiring diagram
