FD30M.20 radar level meter is mainly used in chemical industry, smelting, food processing, sewage and other industries measurement of liquid level height of various corrosive liquids (such as hydrochloric acid, nitric acid, sulfuric acid, alkali liquor, etc.) in storage tanks.
Type of sample：FD30M.20-301B.20010.*
Measurement range 0...120m
It is mainly used to measure corrosive liquids
Small beam angles of 3 °and 8 °can better penetrate the space of mixing blade and tank wall
Within the range of 10m, the minimum blind area can reach 5cm, and the small tank can also realize accurate measurement
The accuracy can reach ± 1mm
Thread and flange connection styles are optional
Optional flange and lens integrated all PTFE material, with stronger anti-corrosion
Anti condensation design, unique antenna structure and special anti condensation algorithm
It is hardly affected by the changes of water vapor, temperature and pressure in the atmosphere
High signal-to-noise ratio, better performance can be obtained even in case of fluctuation
Overall dimensions
Anti-corrosion flange structure at room temperature and pressure
Anti-corrosion flange high temperature and high pressure structure

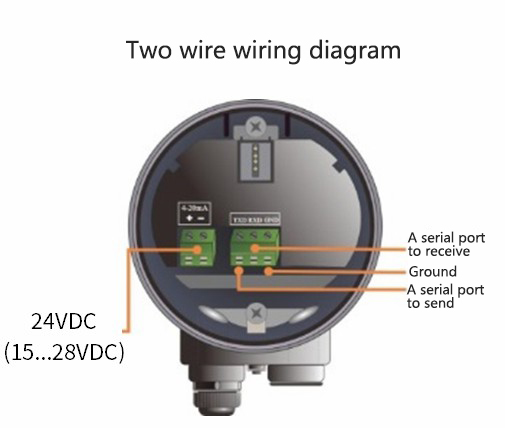

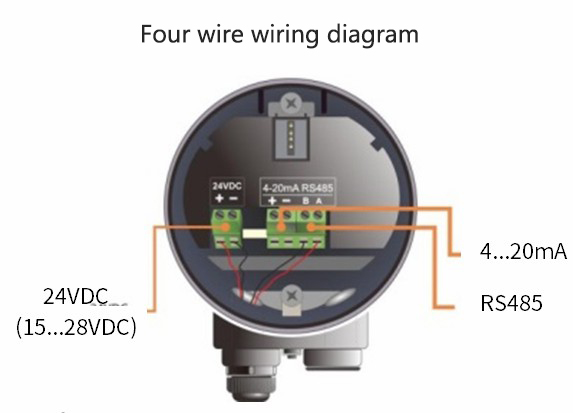

Wiring diagram
