FD30M.radar level meter is mainly used in cement, steel, electric power, coal and construction material level height measurement of solid storage tanks in materials and other industries (e.g. block material, granular material, powder).
Type of sample：FD30M.30-121C0.20010.*
Measurement range 0...120m
It is mainly used to measure the material level of bulk, particle, dust and other silos
With only 3 ° beam angle, small diameter silos can also be easily measured
The blind area is only 8cm, which can be measured in large and small range silos
The accuracy can reach ± 1mm
The measurement band is small and has better penetrability to strong dust environment
Universal flange connection, the measuring angle can be adjusted in any direction
Spherical antenna, small size, easy to install
The special measurement algorithm can penetrate the attached material powder on the antenna surface
High signal-to-noise ratio, better performance can be obtained even in case of fluctuation
Overall dimensions

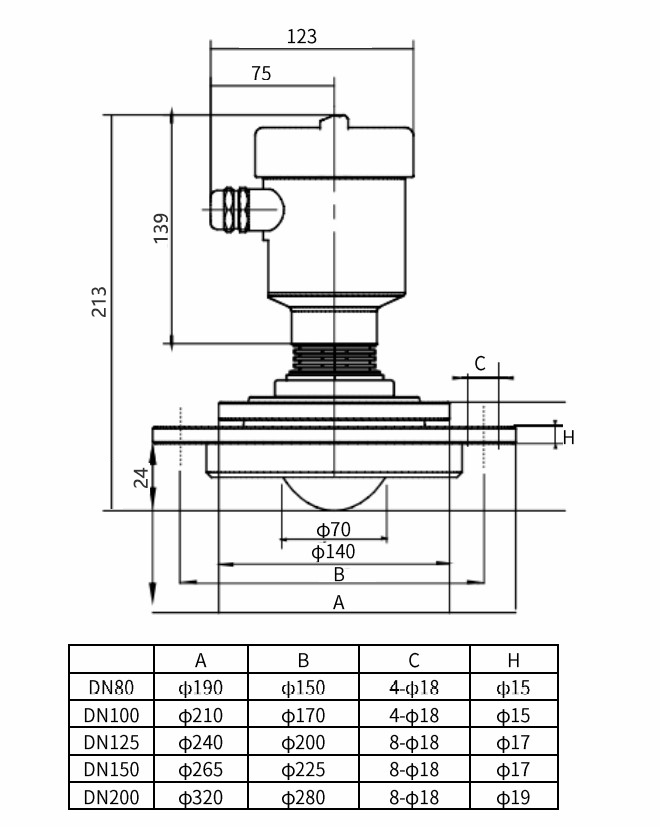

Universal flange normal temperature structure

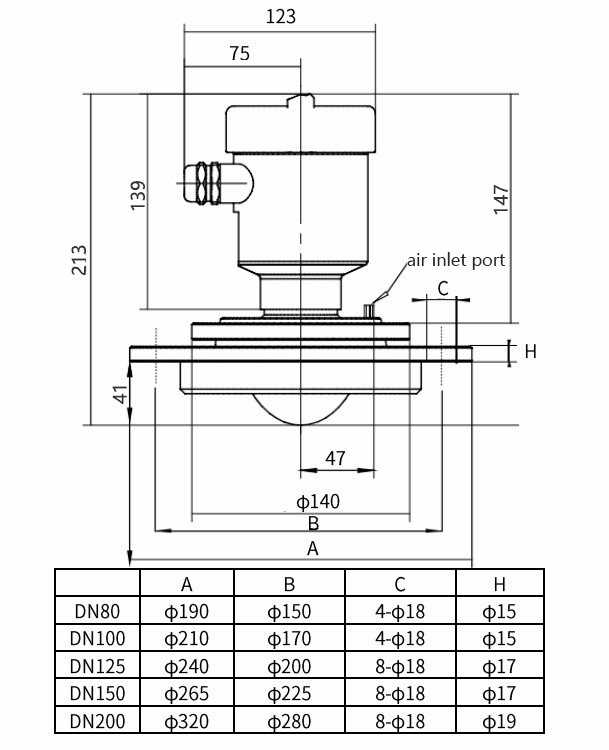

Universal flange high temperature structure
Wiring diagram
