FD30M.40 radar level meter is mainly used for cement, steel, electric power, coal, mining and construction height measurement of strong dust level of powder materials in materials and other industries (such as lime powder, cement powder, flour, etc.).
Type of sample：FD30M.40-321D0.20010.*
Measurement range 0...120m
It is mainly used to measure the material level of dust, very low dielectric constant and other silos
With only 3 ° beam angle, small diameter silos can also be easily measured
The blind area is only 8cm, which can be measured in large and small range silos
The accuracy can reach ± 1mm
The measurement band is small and has better penetrability to strong dust environment
Universal flange connection, the measuring angle can be adjusted in any direction
Planar antenna, small size, easy to install
The special measurement algorithm can penetrate the attached material powder on the antenna surface
High signal-to-noise ratio, better performance can be obtained even in case of fluctuation

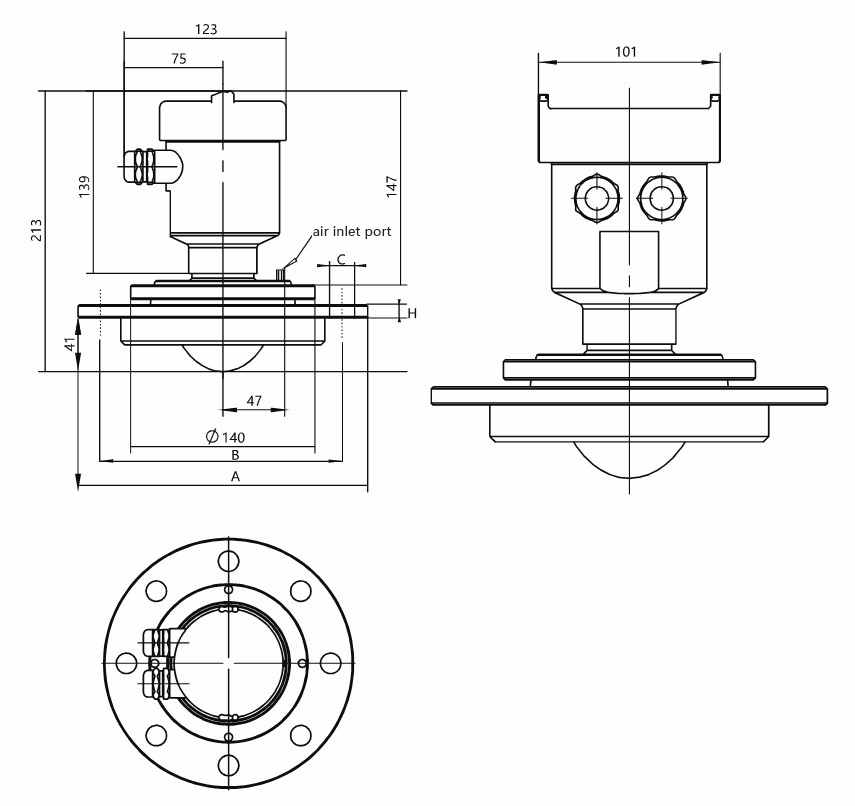

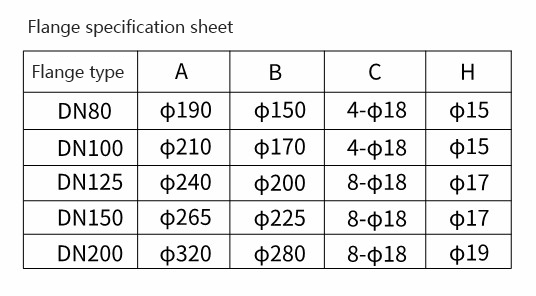

Overall dimensions
Wiring diagram
