FD30M.60 radar is mainly used in rural water conservancy and urban water level water level measurement, such as water level measurement of rivers, reservoirs, lakes, open channels and deep wells.
Type of sample：FD30M.60-311201.*
Measurement range 0...30m
It is mainly used to measure the water level of rivers, reservoirs, lakes, open channels, etc
80g continuous frequency modulation wave and 6 ° beam angle are adopted to realize stable measurement in complex environment
Can use built-in battery, low power design, stable operation for 3-5 years
The special measurement algorithm is suitable for the measurement of water level of weeds, waves and turbulence
The accuracy can reach ± 1mm
RS485 / Nb communication mode is optional
Bracket connection, convenient installation
Optional power supply mode
Display function optional

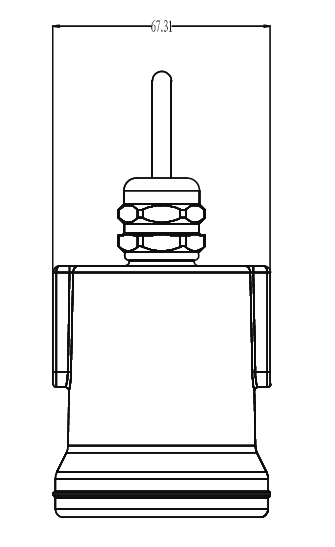

Overall dimensions
Wiring diagram
