FD60.20 it is applicable to the liquid level measurement of various corrosive water and sewage indoors, outdoors and in the field.
Type of sample : FD60.20-3121.5000.F10.*
Measurement range 0...200m
Using diffused silicon piezoelectric crystal, the measurement accuracy can reach 0.1% F.S
The part of the probe in contact with the liquid shall be fully potted to prevent condensation
Thread and flange connection are optional
Probe material 316L, PP, PVDF optional
Stable use, simple maintenance, no debugging
Cable length optional
Built in temperature error compensation
The cable sealing adopts the cone plugging sealing process, which can be used for outdoor and other complex working conditions
Equipped with anti surge impact circuit,good stability

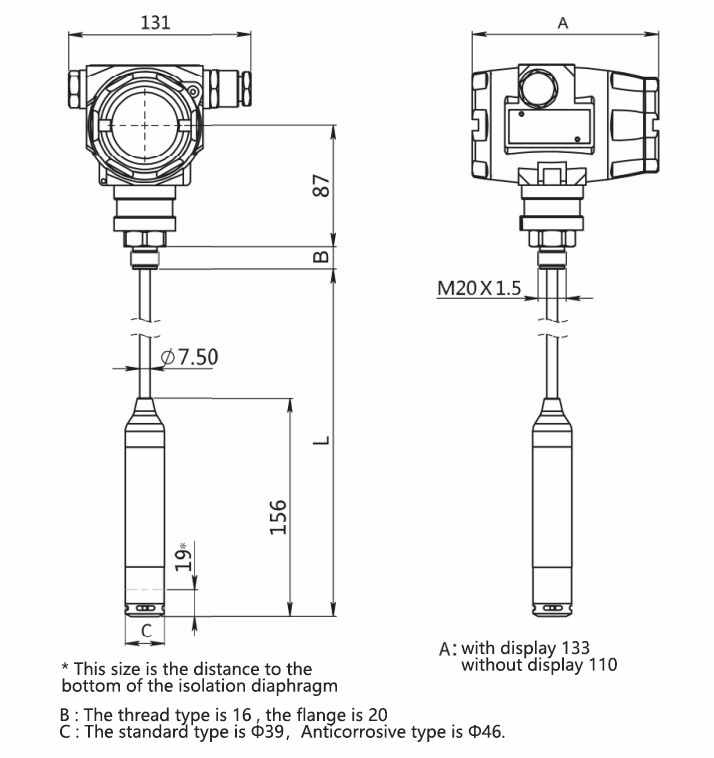

Overall dimensions
Wiring diagram
