PQ03C

PQ03C ultra-small photoelectric switch with background suppression can be used in packaging, logistics, machinery manufacturing and other fields.
Type of sample：PQ03C.41PS2Y.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Detection distance: background suppression type 5...300mm, mirror reflection type 2m

Small size

The response speed is 0.5ms

Not affected by background, black and white object detection accuracy of 0.5mm

Sensitivity can be adjusted

Strong anti-interference ability

Basic parameters

Detection distanceBackground suppression：5…300mm
Specular reflection：2m

Response time≤0.5ms

light source in diameterAt 300mm, Φ7mm circular light spot
At 200mm, Φ6mm circular light spot
At 100mm, Φ5mm circular light spot

Black and white period of poorAt 300mm，5%F.S，15mm
At 200mm，2.5%F.S，4…5mm
At 100mm，0%F.S,＜1mm, black and white
isometric

Should be sent (White background detects white objects) At 300mm，4mm
At 200mm，2mm
At 100mm，0.5mm

Electrical parameters

Power supply12…24VDC

Residual voltage≤15%DC

Open current≤30mA

Protection current1.2 times

IOUT≤100mA

Singal voltage≤2V

Output modeNPN / PNP，NO / NC

Capacity load≤0.2μF

Mechanical parameters

MountM3 nut fixed

Connection type3 wire

Overall dimensions31.4×18.3×12mm（L×W×H）

Shell materialPC plastic

Environmental conditions

Operating temperature﹣20…+60℃（do not form dew/ice）

Storage temperature﹣30…+70℃

VDE security level Ⅲ

Protection classIP67

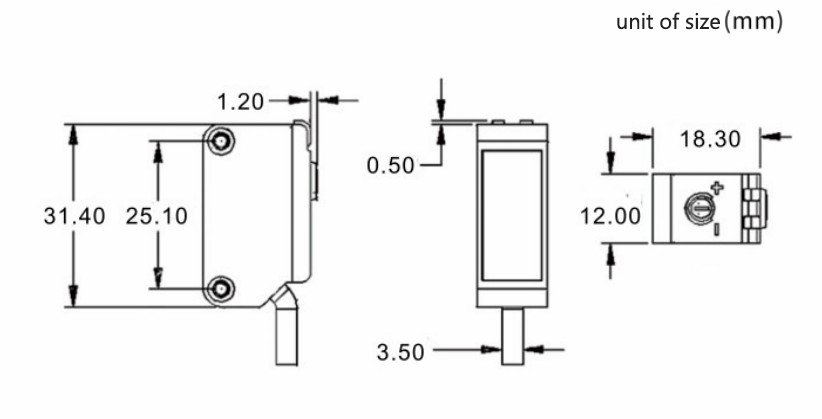

Overall dimensions

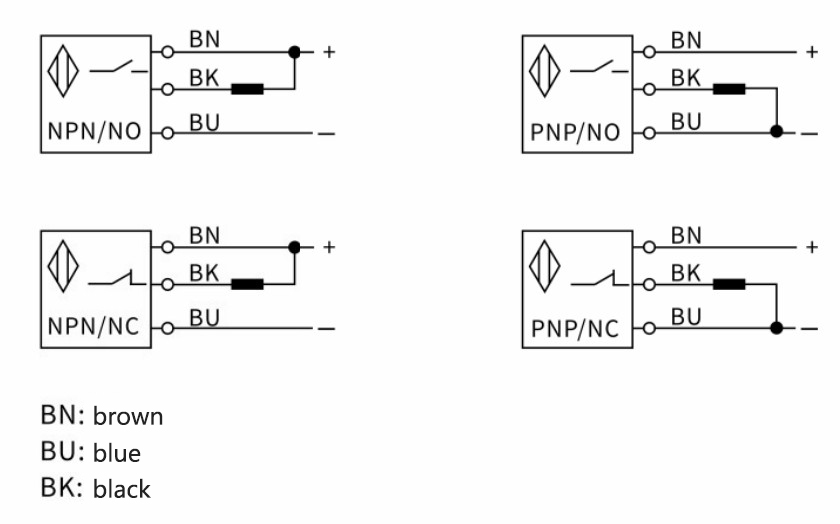

Wiring diagram
