PQ06 small photoelectric switch, can be used in packaging, logistics, machinery manufacturing and other fields.
Type of sample：PQ06.21NS2Y.*
Detection distance: 0...20m, mirror reflection 0.01...4m, diffuse 10...800mm, background suppression 5...100mm/10...300mm
Red visible light source, economical
Background suppression is optional
The response time is very small, only 500μs
The shape structure is very small, the size is 31*20*11mm
With sensitivity adjustment knob, you can set the measuring distance
With light on/dark on setting knob
With action signal output indicator light and laser status indicator light
Cable and connector specifications are optional

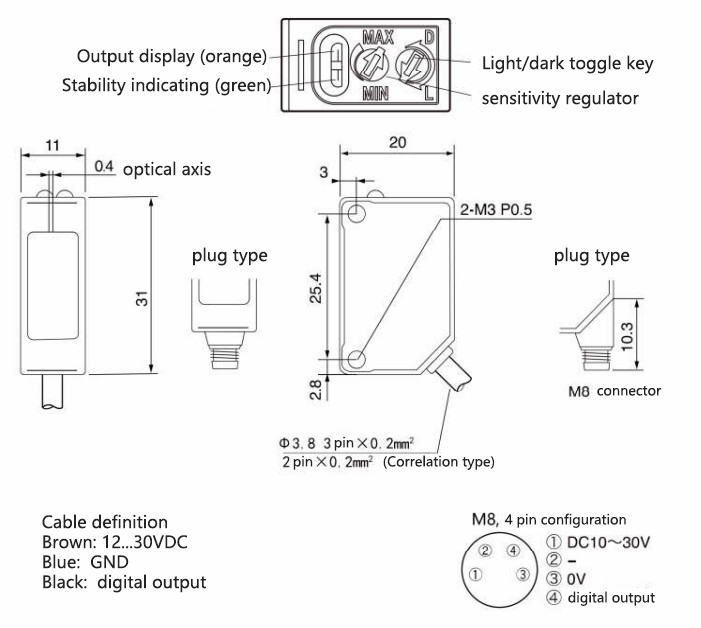

Overall dimensions

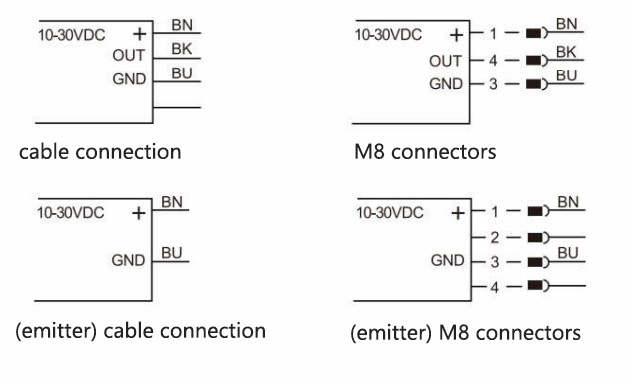

Wiring diagram
