PQ06L small photoelectric switch, can be used in packaging, logistics, machinery manufacturing and other fields.
Detection distance: 0...30m, mirror reflection 0...10m, diffuse 5...400mm, background suppression 5...100mm/10...300mm
Red laser light source, accurate measurement
The light spot is very small: the diffuse reflection type is only 2mm, and the background suppression type is up to 1mm
The response time is very small, only 250μs
The shape structure is very small, the size is 31*20*11mm
With sensitivity adjustment knob, you can set the measuring distance
With light on/dark on setting knob
With action signal output indicator light and laser status indicator light
Cable and connector specifications are optional

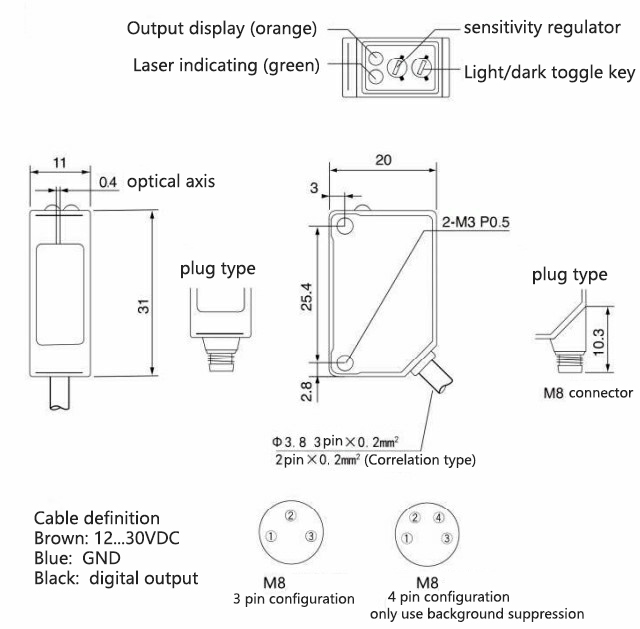

Overall dimensions

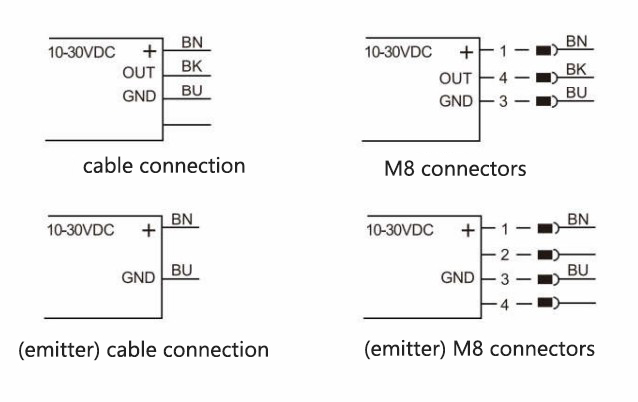

Wiring diagram
