Measuring range up to 4.5m, with a reflector plate up to 20m

Built-in double laser, effectively restrain the measurement deviation caused by the change of ambient temperature

The use of Class1 level visible laser beam, easy to aim at the measured object, direct eye does not hurt the eye

The sensitivity can be adjusted by 4 turns, and the regression reflection model can achieve 12 turns of sensitivity adjustment

Display type optional

Operating voltage range is large, can be in 10V...30V

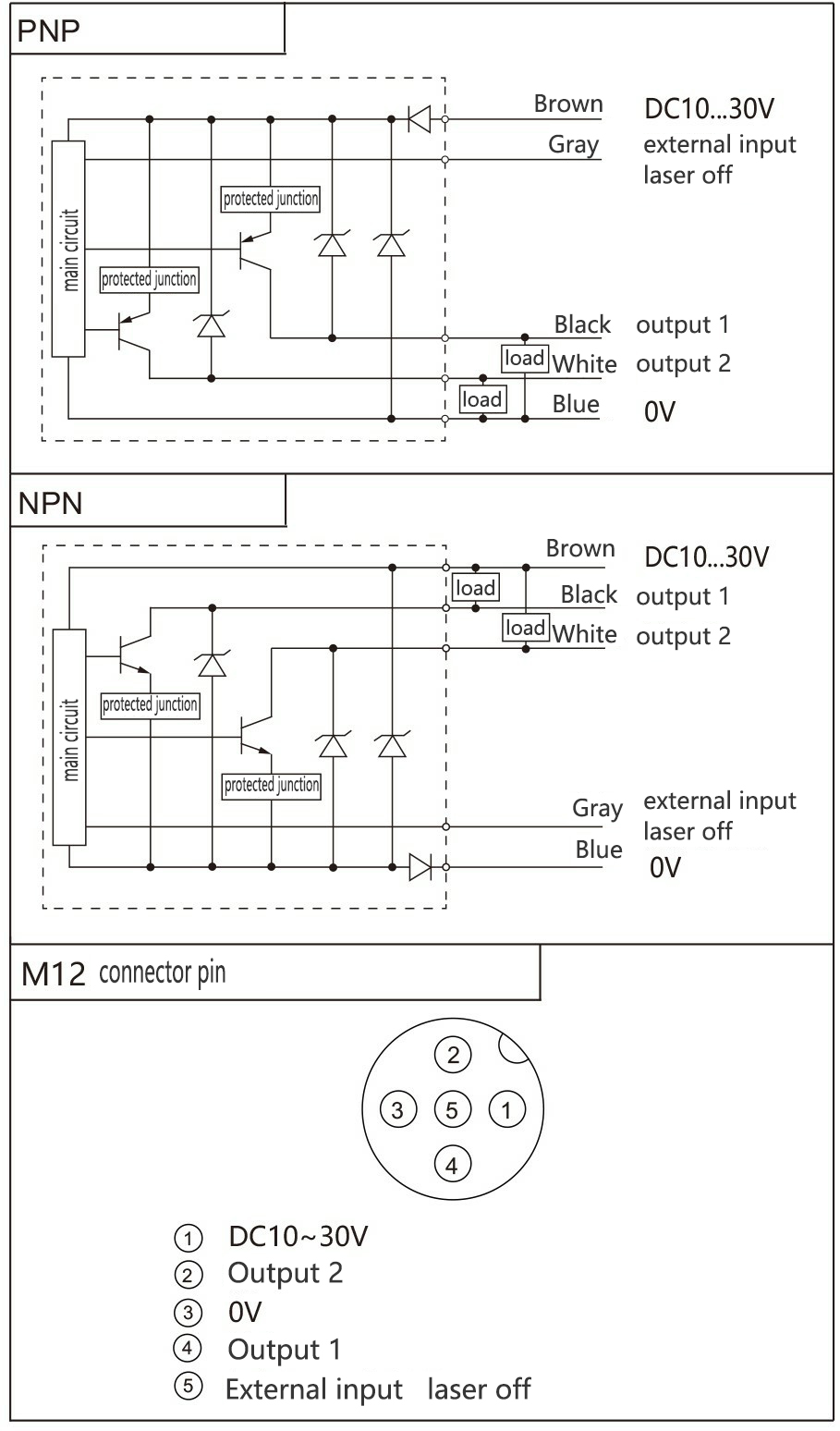

Switching output normally open and normally closed mode can be freely switched

High stability of the sensor, long time operation is not affected

Often used for unmanned transport vehicle position detection

Often used for three-dimensional parking lot vehicle location detection

Automatic warehouse location detection

Position detection of various plates

Location detection of objects in various containers and small tanks
