1、Project brief

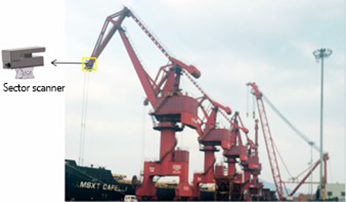

    In the early stage of the project, in order to prevent the boom frame and forearm beam from rotating along with the rotary mechanism of the large crane during the operation of the portal crane, there is the risk of collision between the forearm beam and the fixed 500T mast boom.  In order to prevent the risk of collision, the forearm beam is protected in the form of protection area by the fan-shaped 2D scanner fixed on both sides of the forearm beam.  The sensor adopts special protective cover, with dustproof, waterproof, shading, anti-earthquake, anti-fall and other safety protection functions, can be long-term reliable operation in complex outdoor working environment.

2、Project alternatives

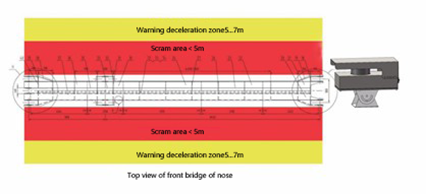

    The control mode is switch input/output control. In the editable fan surface, two rectangular areas are set up (set by software). The yellow area is the alarm deceleration area.  The red area is the emergency stop zone. When the object is sensed to enter this area, the rotating mechanism of the door machine will stop rotating immediately.  (See schematic diagram for collision avoidance area)

3、Product feature

◆ Protection distance can be arbitrarily defined, reserved programming port;

◆ With protective cover, good waterproof performance, suitable for outdoor working conditions;

◆ Installation mode side installation, vertical installation, Angle can be adjusted up and down, left and right adjustment

◆ Internal shock absorption, to ensure the reliability of the sensor in harsh environment;

◆ Supporting suspension chain, eliminate the risk of accidental fall;

◆ Optional high protection IP69 waterproof junction box, outdoor wiring is convenient, safe;

◆ Optional outdoor use of high flexibility flexural tensile, sun resistant, salt fog shielding signal cable;

◆ According to user requirements, preset parameters, general customers can be put into use without adjustment;
